Deployed Rollover Protection, Returning to Stored Position







Deployed Rollover Protection, Returning to Stored Position

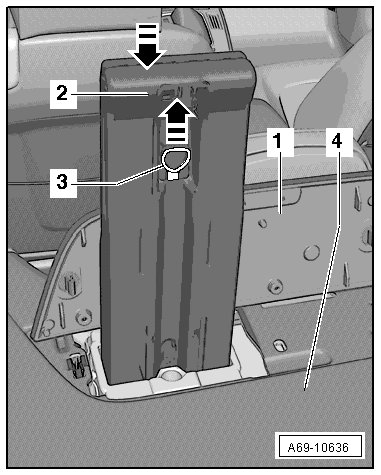

- Unlock the driver or passenger side rollover protection - 2 - with the red lock - 3 - and push it back into its start position. The rollover protection must audibly engage.

Ignore - items 1 and 4 -.
