Central Locking System Assembly Overview

Central Locking System Assembly Overview

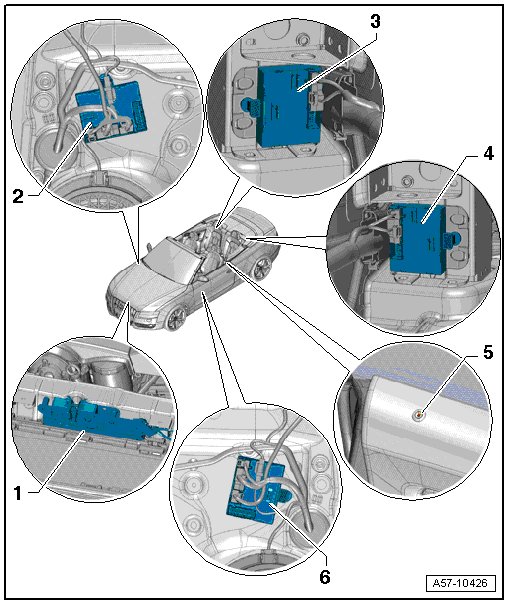

Hood Switch, SAFE Indicator Lamp, Driver And Front Passenger Door Control Module





1 Hood Switch (F266)

• Location: inside the rear lid lock

• Removing and Installing, refer to => [ Hood Switch ] Hood Switch

2 Front Passenger Door Control Module (J387)

• Removing and Installing, refer to => [ Driver Door and Front Passenger Door Control Modules ] Driver Door and Front Passenger Door Control Modules

3 Right Rear Door Control Module (J389)

• Removing and Installing, refer to => [ Left and Right Rear Door Control Modules ] Left and Right Rear Door Control Modules

4 Left Rear Door Control Module (J388)

• Removing and Installing, refer to => [ Left and Right Rear Door Control Modules ] Left and Right Rear Door Control Modules

5 Central Locking -SAFE- Indicator Lamp (K133)

6 Driver Door Control Module (J386)

• Removing and Installing, refer to => [ Driver Door and Front Passenger Door Control Modules ] Driver Door and Front Passenger Door Control Modules

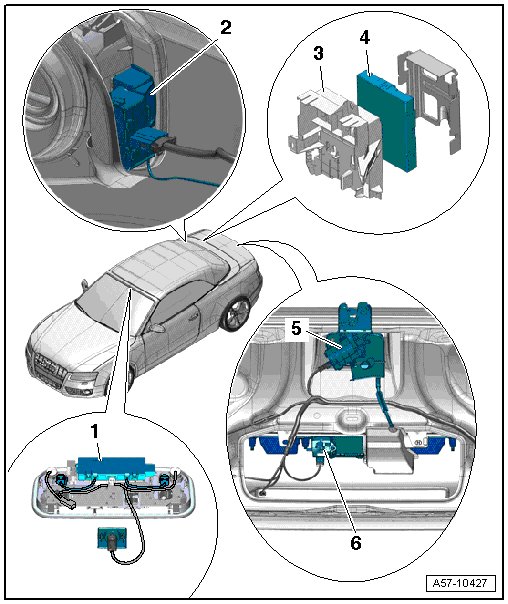

Comfort System Central Control Module, Rear Lid Lock Cylinder Contact Switch, Central Locking Motor in Rear Lid, Anti-Theft Alarm System Sensor And Fuel Tank Lid Unlock Motor





1 Anti-Theft Alarm System Sensor (G578)

2 Fuel Filler Door Unlock Motor (V155)

• Removing and Installing, refer to => [ Fuel Tank Lid Unlock Motor ] Fuel Tank Lid Unlock Motor

3 Mounting Bracket

• For control modules

4 Comfort System Central Control Module (J393)

5 Rear Lid Lock

• With the rear lid central locking system motor (V53)/rear lid alarm switch (F123), cannot be replaced separately

• Assembly overview, refer to => [ Rear Lid Lock and Striker Pin Assembly Overview ] Description and Operation

6 Rear Lid Lock Cylinder Unlock Button (F248)

• Integrated inside the handle strip, cannot be replaced separately

• Removing and Installing, refer to => [ Grip ] Grip
