Subframe Shield

Subframe Shield

- Remove the crossbrace, Cabriolet. Refer to => [ Subframe Crossbrace, Cabriolet ] Subframe Crossbrace, Cabriolet.

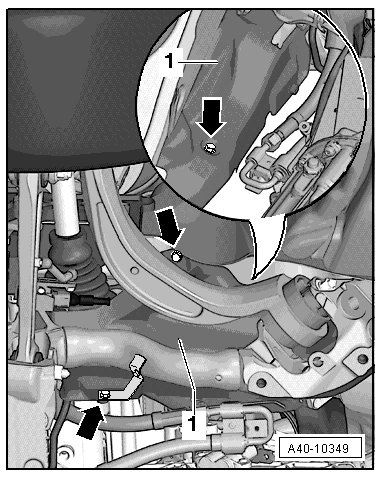

- Remove the bolts - arrows -.






- Remove the subframe shield - 1 -.

Installing

Install in reverse order of removal. Note the following:

• Insert the square nuts into the cast recesses before installing the subframe shield.

Tightening specifications, refer to => [ Subframe, Crossbrace, Diagonal Brace, Stabilizer Bar, Coupling Rod and Subframe Shield Assembly Overview, from 09.2007 ] .
