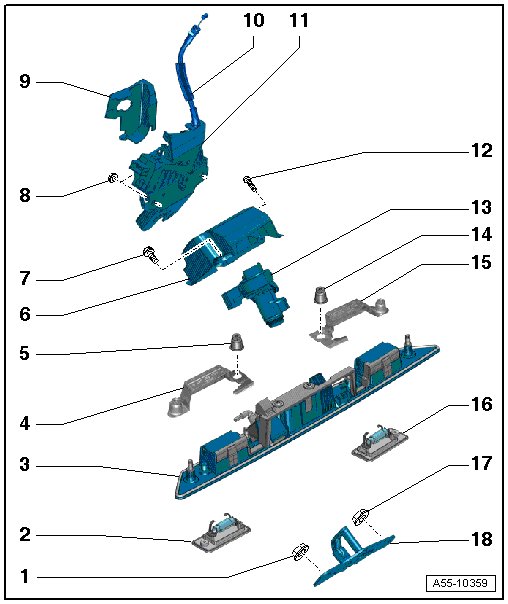

Trunk / Liftgate Latch: Description and Operation

Rear Lid Lock and Striker Pin Assembly Overview






1 Nut

• 21 Nm

2 Left License Plate Lamp

3 Handle

• With rear lid handle unlock switch (E234), cannot be replaced separately

• Removing and Installing, refer to => [ Grip ] Grip

4 Left Anti-Theft Protection with Nut

• 4 Nm

• Removing and Installing, refer to => [ Grip ] Grip

5 Cap nut

• 4 Nm

6 Anti-theft Protection

• For lock cylinder

• Removing and Installing, refer to => [ Lock Cylinder ] Lock Cylinder

7 Bolt

• 1.7 Nm

8 Nut

• 21 Nm

9 Anti-theft Protection

• for the rear lid lock

• Removing and Installing, refer to => [ Rear Lid Lock Cable ] Rear Lid Lock Cable

10 Cable

• For the rear lid lock

• Removing and Installing, refer to => [ Rear Lid Lock Cable ] Rear Lid Lock Cable

11 Rear Lid Lock

• With rear lid alarm switch (F123)

• Removing and Installing, refer to => [ Rear Lid Lock ] Rear Lid Lock

12 Bolt

• 1.7 Nm

13 Lock Cylinder

• Removing and Installing, refer to => [ Lock Cylinder ] Lock Cylinder

14 Cap Nut

• 4 Nm

15 Right Anti-Theft Protection with Nut

• 4 Nm

• Removing and Installing, refer to => [ Grip ] Grip

16 Right License Plate Lamp

17 Nut

• 21 Nm

18 Striker Pin

• Removing and Installing, refer to => [ Striker Pin ] Striker Pin

• Adjusting, refer to => [ Rear Lid, Adjusting ] Rear Lid, Adjusting
