Wiring Harness Cover

Wiring Harness Cover

Removing

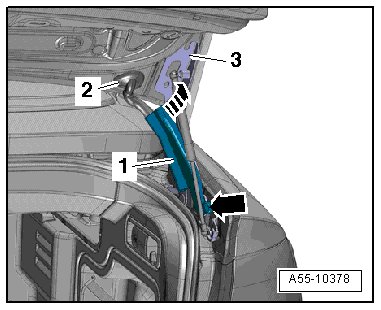

- Carefully unclip the cover - 1 - on the hinge - 3 - - arrows -.

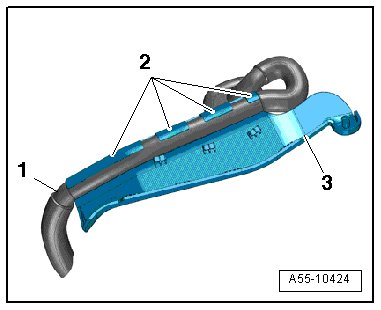

- Disengage the wiring harness - 1 - from the mounts - 2 -.






- Remove cover - 3 -.

Installation

Installation is reverse of removal, but note the following:

- Press the cover back onto the hinge until it audibly engages.
