Television / Monitor: Locations

Component locations: Radio / Navigation Systems

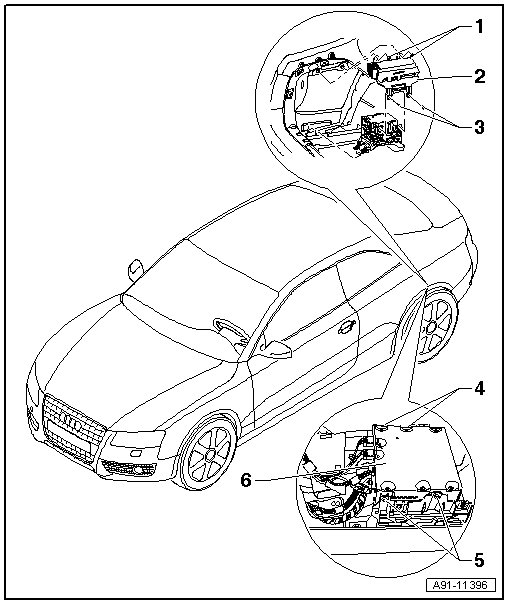

TV System Assembly Overview

6 - TV Tuner -R78-
• Behind luggage compartment left side trim
