Parking Aid, Parking Aid Control Module

Parking Aid Control Module

Removing

- If the control module was replaced, select the "Replace" function for the respective control module in "Guided Fault Finding" or "Guided Functions".

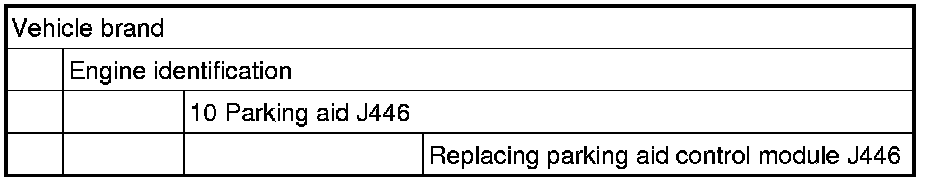

- Select the function or path:






- Follow the instructions on the vehicle diagnosis tester display.

- Open the right luggage compartment side trim cover.





- Disconnect electrical connectors - 2 through 4 -.

- Release clip - arrow - and pull park assist control module (J446) - item 1 - out of mounting frame.

Installing

Install in reverse order.
