Audi
>>
2010
>>
Q7 Quattro (4LB) V6-3.0L DSL Turbo (CATA)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Fastener Tightening Specifications - Gears, Hydraulic Controls
Fastener Tightening Specifications - Gears, Hydraulic Controls

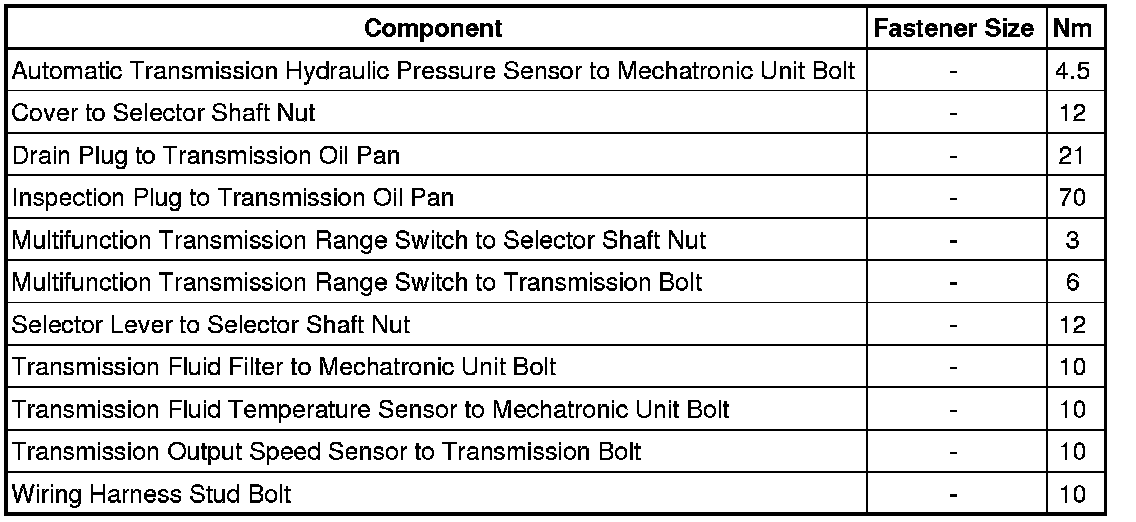

Fastener Tightening Specifications
