Home >> Audi >> 2010 >> Q7 Quattro (4LB) V6-3.0L DSL Turbo (CATA) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Fastener Tightening Specifications - Controls, Housing

Fastener Tightening Specifications - Controls, Housing

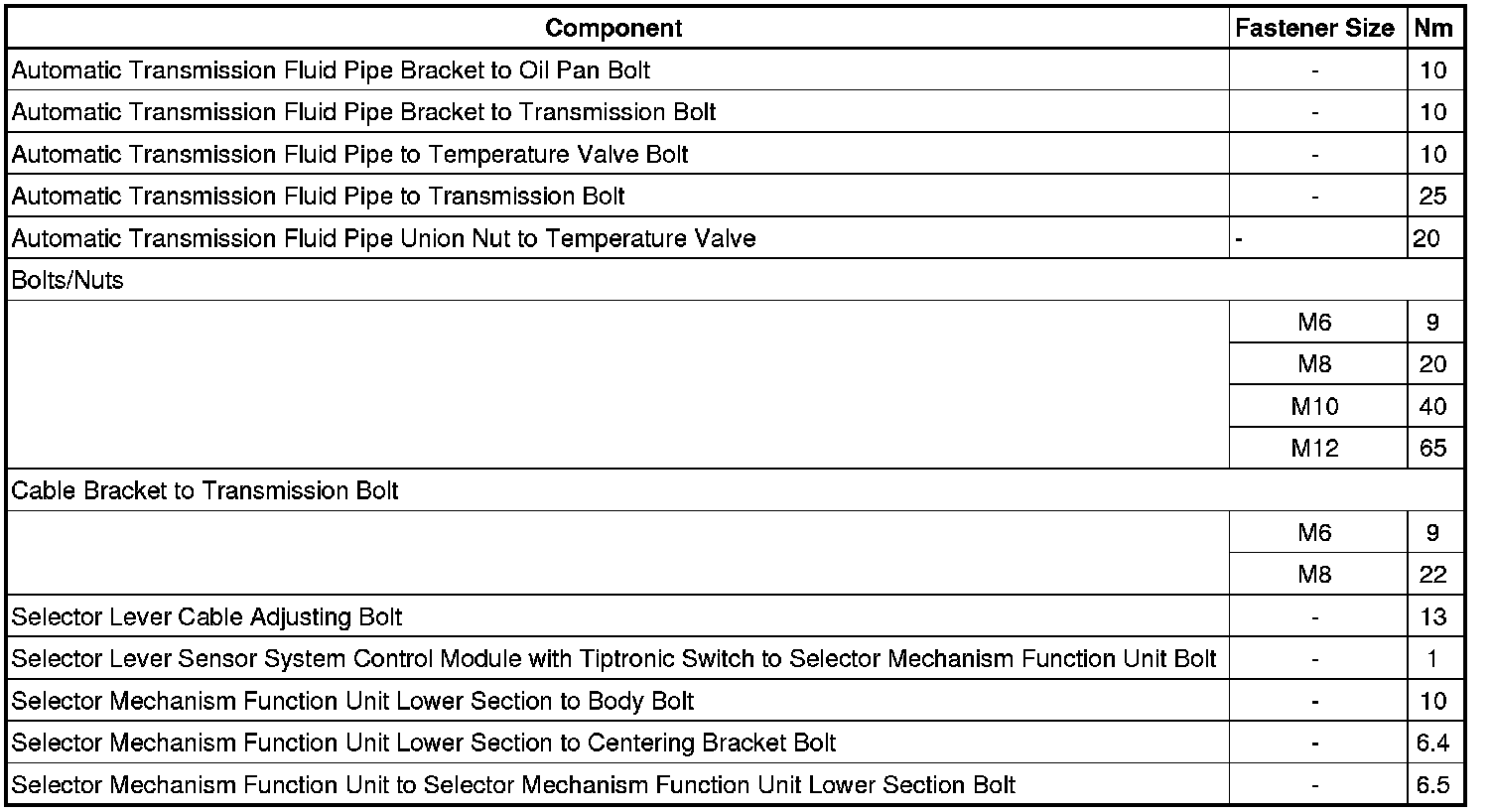

Fastener Tightening Specifications

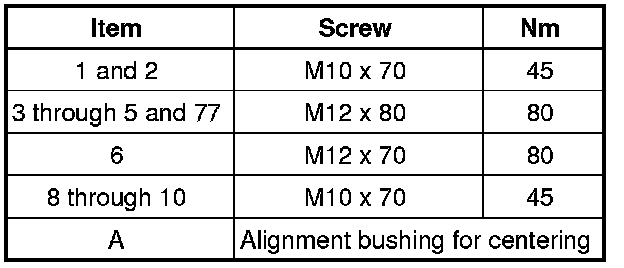

Engine/Transmission Bolt Tightening Sequence and Specifications. 3.0L Engine
