Fuel Cooler Pump, Vehicles Built Through 05.10

Fuel Cooler Pump, Vehicles Built through 05.10

Special tools, testers and auxiliary items required

• Hose Clamps Up to 25 mm Dia. (3094)

• Hose Clip Pliers (VAS 6362)

Removing

- On a vehicle with air suspension, activate vehicle lift mode.

- Remove the front noise insulation - 1 -.






- Disconnect the connector - 1 -.

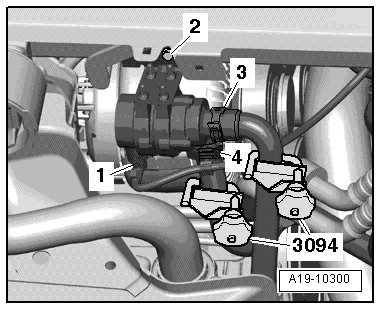

- Loosen the hose clamps - 3 - and - 4 - and remove the (3094).

- Remove the bolt - 2 - and the fuel cooler pump (V166).

Installing

Install in reverse order of removal. Note the following:

• Secure all hose connections with hose clamps appropriate for the model, refer to the Parts Catalog.

- Tighten the fuel cooler pump to the longitudinal member. Refer to => [ Vehicles Built through 05.10 , Tightening Specifications ] Service and Repair.

- Check the coolant level => [ Check the coolant level. ] Procedures.

- Install the noise insulation..

- On a vehicle with air suspension, deactivate vehicle lift mode.
