Diesel Emissions Fluid Injector Nozzle: Description and Operation

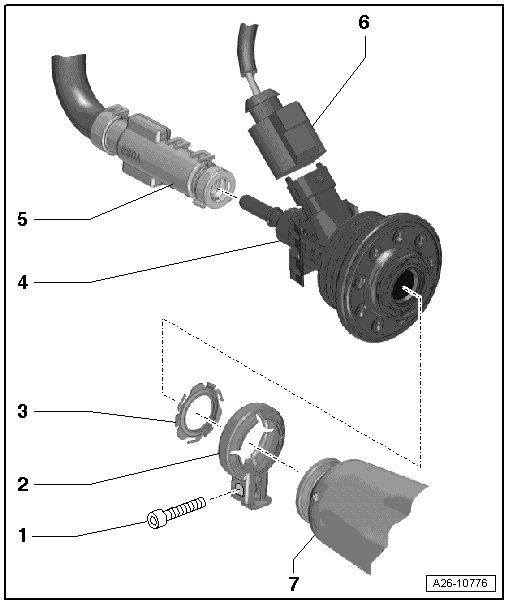

AdBlue(R) Injector Overview






1 Bolt

• 5 Nm

2 Clamp

3 Gasket

• Replace

4 Reducing agent injector (N474)

• Removing and installing, refer to => [ Reducing Agent Injector (N474) ] Reducing Agent Injector (N474)

5 Hose

• For reducing agent

• To disconnect, press release button on connection piece

6 Electrical Harness Connector

7 SCR - Catalytic Converter
