Left Ribbed Belt Idler Roller

Left Ribbed Belt Idler Roller

Removing

- Remove the ribbed belt from the tensioning element. Refer to => [ Ribbed Belt ] Ribbed Belt.

- Tilt the toothed belt guard forward - arrows - and disengage the pins on the underside of the guard.






• The toothed belt guard is shown with the intake manifold upper section removed.

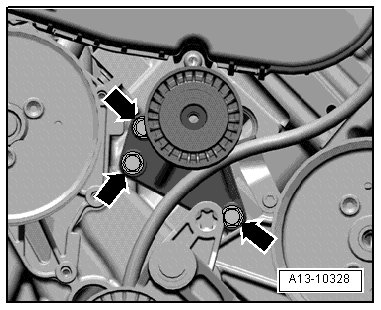

- Remove the bolts - arrows - and the ribbed belt idler roller.






Installing

Install in reverse order of removal. Note the following:

• Tightening specifications, refer to => [ Ribbed Belt Drive Overview ] Ribbed Belt Drive Overview

- Install the ribbed belt. Refer to => [ Ribbed Belt ] Ribbed Belt.
