Camshaft Oil Seal: Service and Repair

Camshaft Seal

Special tools, testers and auxiliary items required

• Seal Puller - General Useage (2085)

• Retainer (3036)

• M10 x 1.25 x 40 hex bolt from Seal Installer (3241)

• Assembly Tool (T10053)

• Puller (T10320)

Procedure

• Tightening specifications, refer to => [ Cylinder Head Overview ] Cylinder Head Overview.

- Carefully pull the engine cover - arrows - off the 4 bolts one after the other.






- Remove the upper section of the intake manifold.






- Remove the high pressure pump toothed belt.






- Loosen the toothed belt drive sprocket bolt - 1 - 2 turns using the (3036).






- Remove the toothed belt drive sprocket using the (T10320).

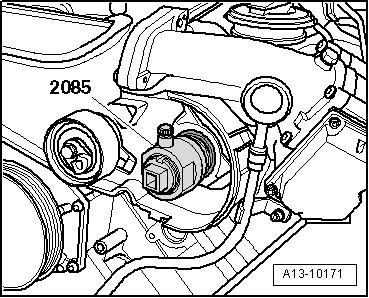

- Turn the inner part of the (2085) 3 turns from the outer part and lock the inner part with the knurled bolt.






- Lubricate the seal remover threaded head, position it, and then install it into the shaft seal as far as possible using strong force.

- Loosen the knurled bolt and rotate the inner section against the camshaft until the shaft seal is removed.

- Secure the seal remover in a vise at the flat spots and remove the seal using pliers.

- Clean running and sealing surface.

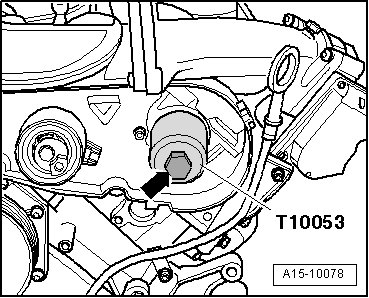

- Install the new seal all the way using the pressure sleeve from the (T10053) using the hex head bolt M10 x 1.25 x 40 - arrow - from the (3241).






Assembly is performed in reverse order of removal, noting the following:

- Install the high pressure pump toothed belt and the upper section of the intake manifold.
