Fan Shroud and Coolant Fan Overview

Fan Shroud and Coolant Fan Overview

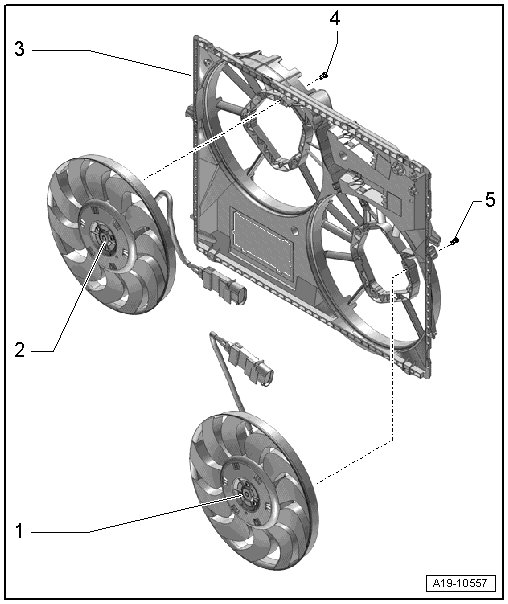

1 Coolant Fan (V7) with Coolant Fan Control Module (J293)

• Removing and installing, refer to => [ Coolant Fan ] Coolant Fan

2 Coolant Fan 2 (V177) with Coolant Fan Control Module 2 (J671)

• Removing and installing, refer to => [ Coolant Fan ] Coolant Fan

3 Fan Rib

• Removing and installing - vehicles built through 05.10, refer to => [ Fan Shroud, Vehicles Built through 05.10 ] Fan Shroud, Vehicles Built Through 05.10

• Removing and installing - vehicles built from 06.10, refer to => [ Fan Shroud, Vehicles Built from 06.10 ] Fan Shroud, Vehicles Built From 06.10

4 Bolt

• 10 Nm

5 Bolt

• 10 Nm
