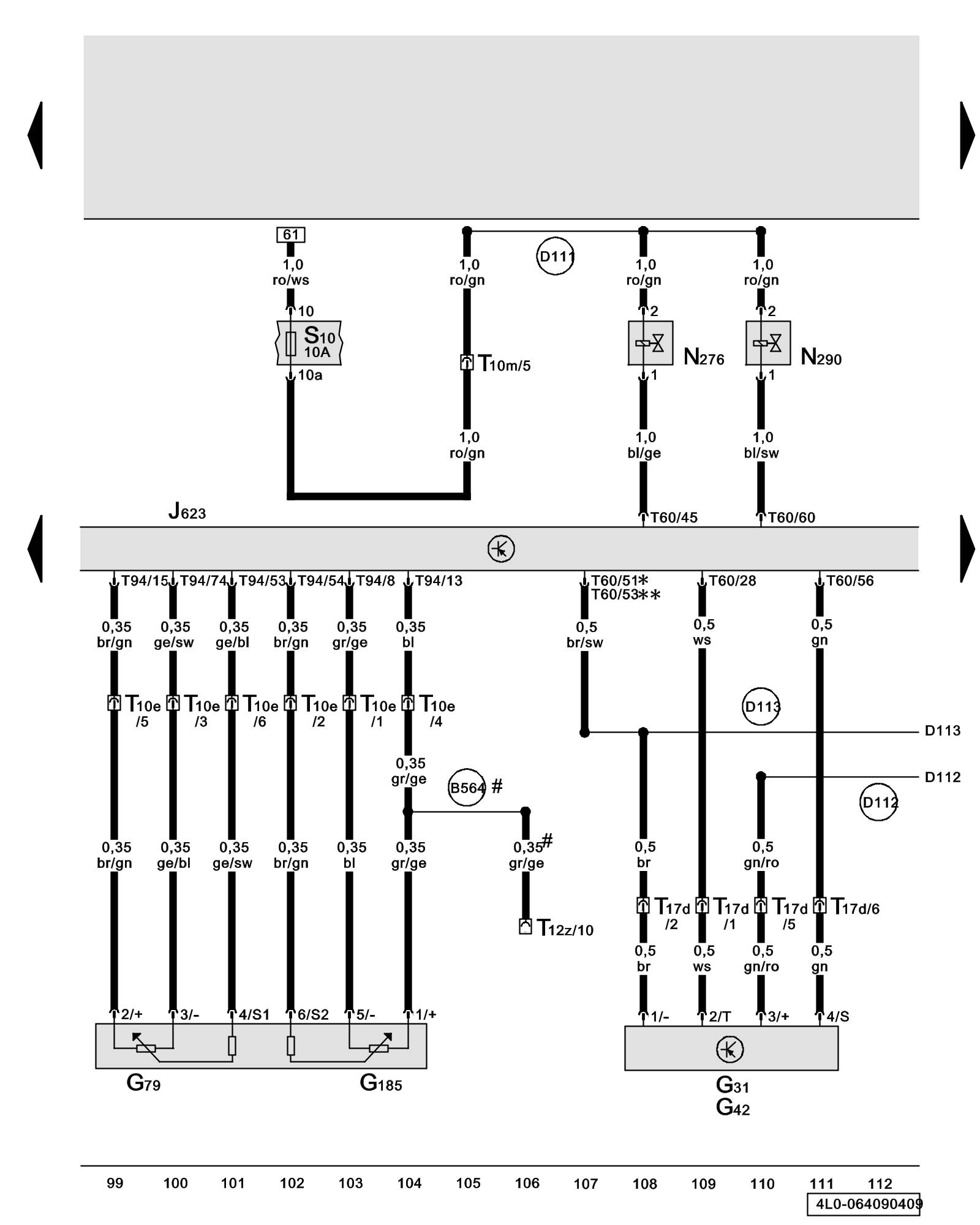

Diagram 64/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Throttle Position (TP) Sensor, Charge Air Pressure Sensor, Intake Air Temperature (IAT) Sensor, Fuel Pressure Regulator Valve, Fuel Metering Valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor Locations

G42 - Intake Air Temperature (IAT) Sensor Locations

G79 - Throttle Position (TP) Sensor Locations

G185 - Accelerator Pedal Position Sensor 2 Locations

J623 - Engine Control Module (ECM) Overview Of Control Modules

N276 - Fuel Pressure Regulator Valve Locations

N290 - Fuel Metering Valve Locations

S10 - Fuse (on fuse/relay panel)

T10e - 10-Pin Connector, green, connector station electronics box plenum chamber Overview of Connector Stations

T10m - 10-Pin Connector, black, connector station electronics box plenum chamber Overview of Connector Stations

T12z - 12-Pin Connector, brown, in left luggage compartment

T17d - 17-Pin Connector, white, connector station electronics box plenum chamber Overview of Connector Stations

T60 - 60-Pin Connector, black, on engine control module (ECM) Locations

T94 - 94-Pin Connector, black, on engine control module (ECM) Locations

(B564) - Connection 31 (in main wiring harness)

(D111) - Connection 9 (in engine compartment wiring harness)

(D112) - Connection 10 (in engine compartment wiring harness)

(D113) - Connection 11 (in engine compartment wiring harness)

* - Through October 2008

** - From November 2008

# - Models with special functions interface
