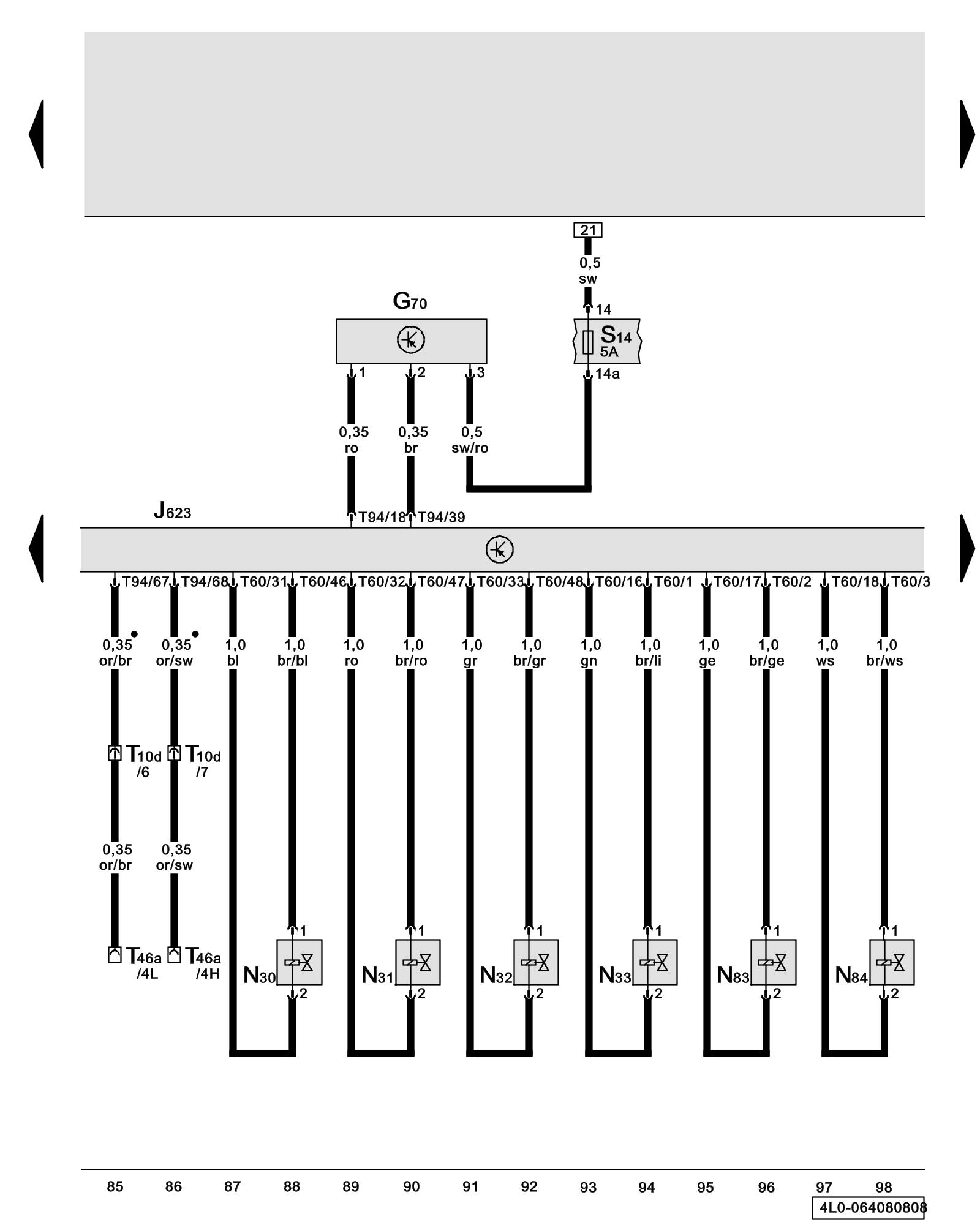

Diagram 64/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Cylinder 1 through 6 Fuel Injectors, Mass Air Flow (MAF) Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G70 - Mass Air Flow (MAF) Sensor Locations

J623 - Engine Control Module (ECM) Overview Of Control Modules

N30 - Cylinder 1 Fuel Injector Locations

N31 - Cylinder 2 Fuel Injector Locations

N32 - Cylinder 3 Fuel Injector Locations

N33 - Cylinder 4 Fuel Injector Locations

N83 - Cylinder 5 Fuel Injector Locations

N84 - Cylinder 6 Fuel Injector Locations

S14 - Fuse (on fuse/relay panel)

T10d - 10-Pin Connector, blue, connector station electronics box plenum chamber Overview of Connector Stations

T46a - 46-Pin Connector, black, left CAN separating connector Overview of Connector Stations

T60 - 60-Pin Connector, black, on engine control module (ECM) Locations

T94 - 94-Pin Connector, black, on engine control module (ECM) Locations

• - CAN-Bus (data wire)
