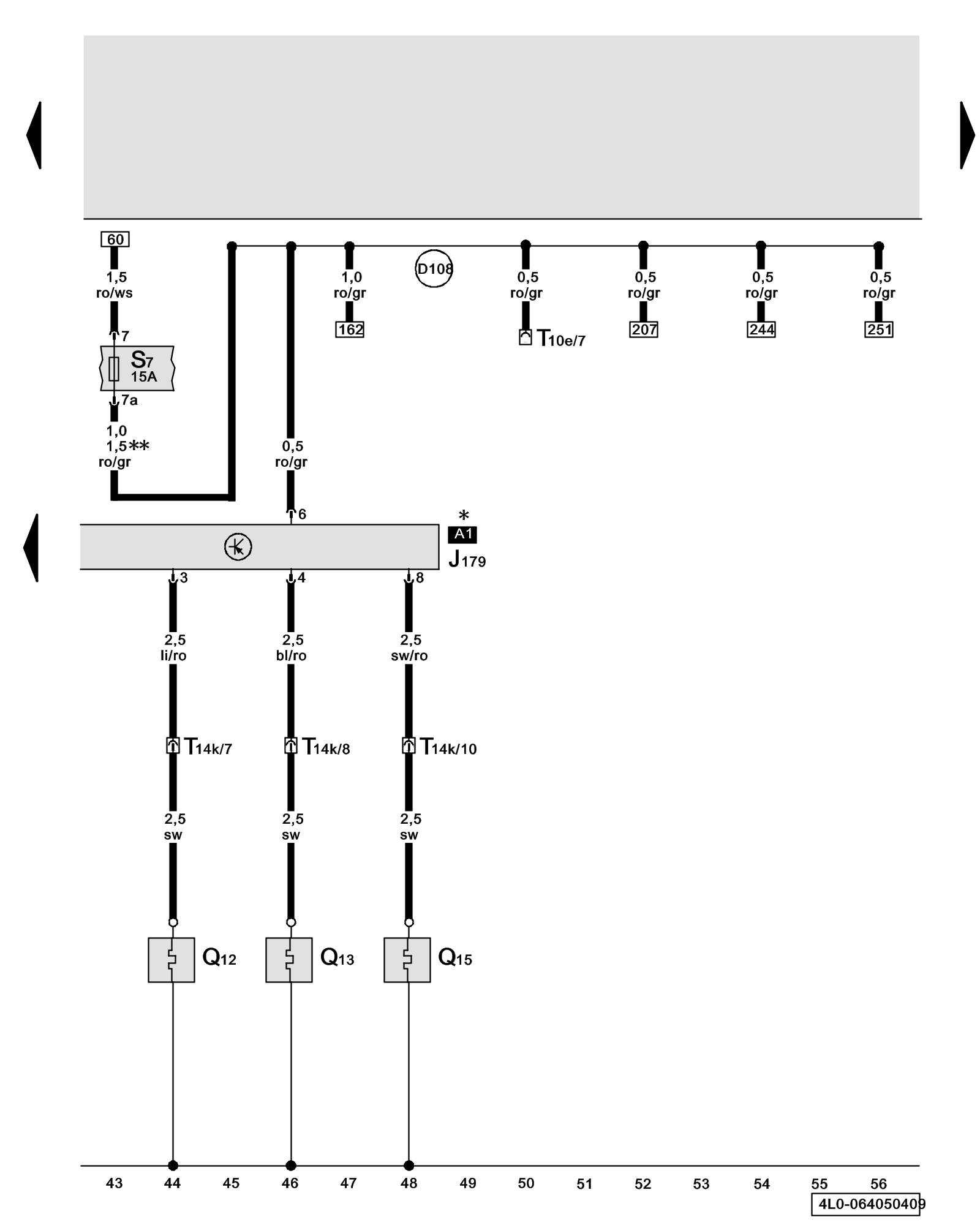

Diagram 64/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Automatic Glow Time Control Module, Glow plugs





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J179 - Automatic Glow Time Control Module Overview Of Relay

Q12 - Glow Plug 3 Locations

Q13 - Glow Plug 4 Locations

Q15 - Glow Plug 6 Locations

S7 - Fuse (on fuse/relay panel)

T10e - 10-Pin Connector, green, connector station electronics box plenum chamber Overview of Connector Stations

T14k - 14-Pin Connector, black, in right engine compartment

(D108) - Connection 6 (in engine compartment wiring harness)

* - Relay and fuse carrier electronics box plenum chamber

** - Phased-in modification
