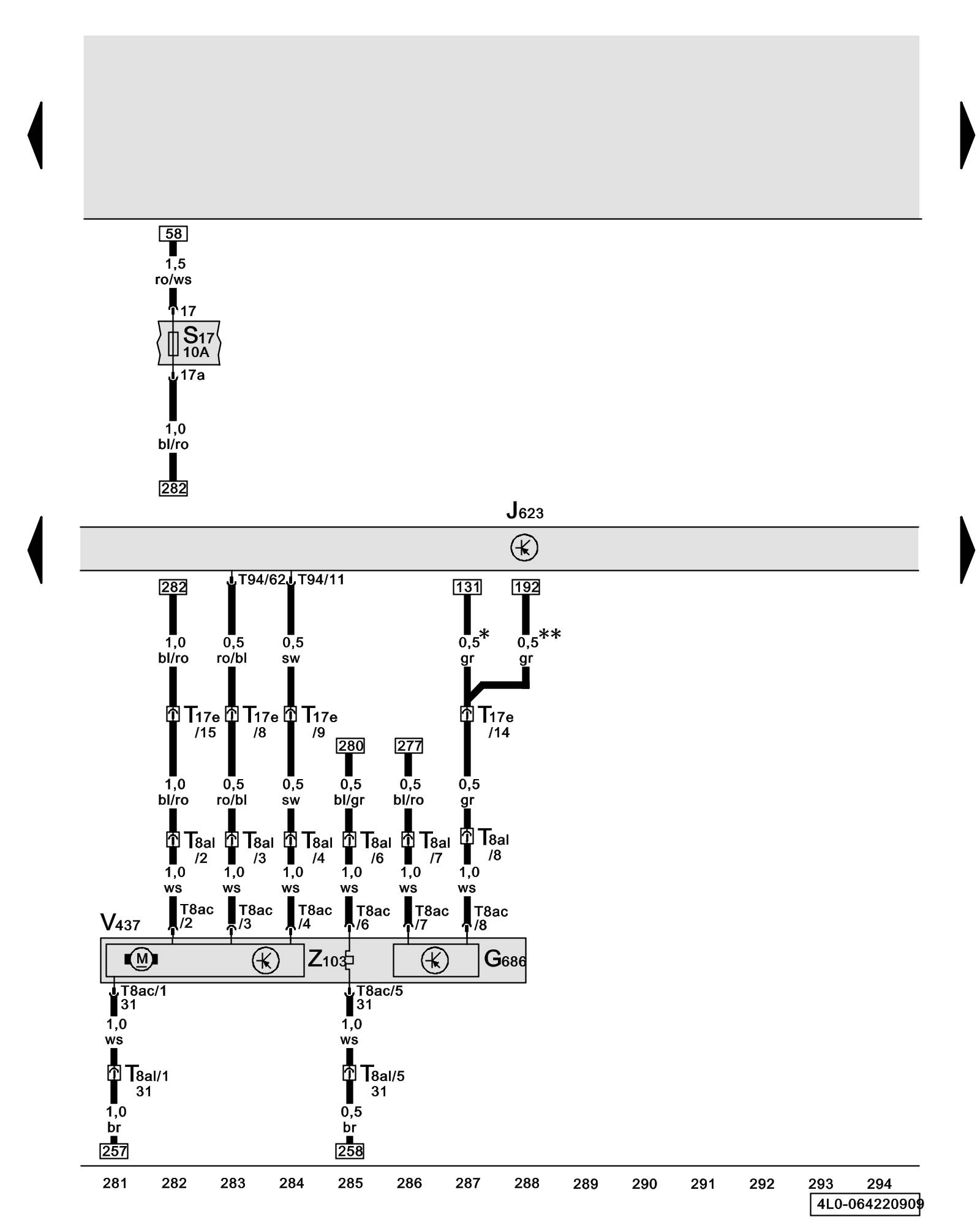

Diagram 64/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Reducing Agent Pump, Reducing Agent Pump Heater, Reducing Agent Metering System Pressure Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G686 - Reducing Agent Metering System Pressure Sensor Locations

J623 - Engine Control Module (ECM) Overview Of Control Modules

S17 - Fuse (on fuse/relay panel)

T8ac - 8-Pin Connector, black, on reducing agent pump

T8al - 8-Pin Connector, near reducing agent pump

T17e - 17-Pin Connector, brown, connector station electronics box plenum chamber Overview of Connector Stations

T94 - 94-Pin Connector, black, on engine control module (ECM) Locations

V437 - Reducing Agent Pump Locations

Z103 - Reducing Agent Pump Heater Locations

* - Through October 2008

** - From November 2008
