B-Pillar Trim Overview

B-Pillar Trim Overview


• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components General Safety Precautions ] .

• Note the additional safety precautions when working on the side curtain airbag. Refer to => [ Head Curtain Airbag Safety Precautions ] Head Curtain Airbag Safety Precautions.

• Do not clamp head curtain airbag - 2 - when installing B-pillar trim - 1 -.

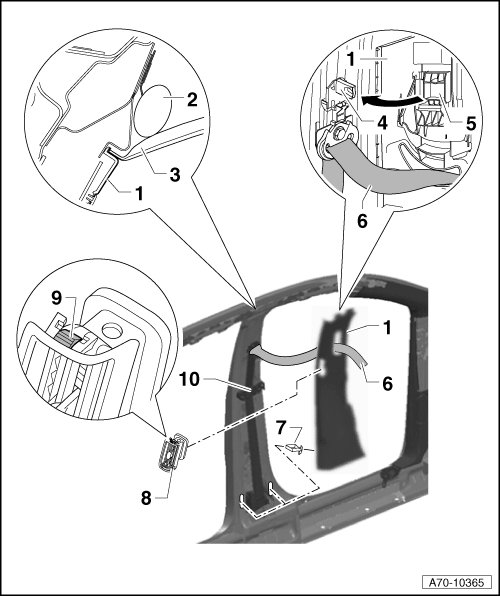

1 B-pillar Trim

• Removing and installing, refer to => [ B-Pillar Trim ] B-Pillar Trim.

2 Head Curtain Airbag

3 Headliner

4 Retaining Pin On The Seat Belt Height Adjuster

5 Mount On The Sliding Piece Of The B-pillar Trim

6 Belt Webbing

7 Clips

• Quantity: 2

• Replace if damaged or deformed.

8 Vent

9 Spring Clamp

• For vent => [ (Item 8) Vent ].

10 Front Belt Guide
