Bass Speaker (R100), Bang and Olufsen

Bass Speaker (R100), Bang and Olufsen

The bass speaker is located inside the spare wheel well.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove floor panel.

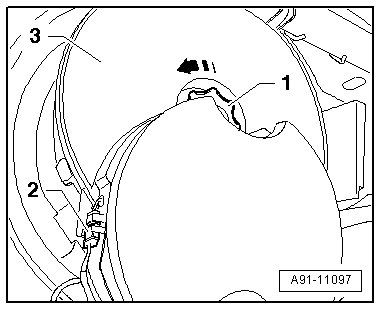

- Disconnect the connector - 2 - from the bass speaker - 3 -.





- Turn star handle- 1 - in - direction of arrow - until it can be removed.

- Remove the bass speaker from the spare wheel well.

Installing

- Install in reverse order of removal.
