Shift Mechanism from MY 2008 Assembly Overview
Shift Mechanism from MY 2008 Assembly Overview

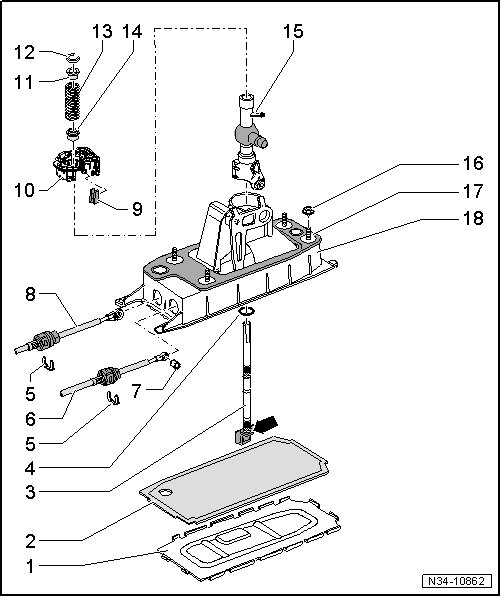

• Lubricate mounting areas and slide surfaces with Grease (G 000 450 02).
• Selector mechanism, disassembling and assembling.
1 Base plate
• Bend open tabs to remove
• Always replace
2 Gasket
• Always replace
3 Selector lever
• Can be removed and installed with the shift lever guide installed => [ (Item 15) Shift lever guide ]
4 Damping washer
• Slide out of shift lever as far as stop - arrow -
5 Retaining washer
• Do not damage cables when removing
• Always replace
6 Selector cable
• Pry off of selector bracket
• Press onto selector bracket inside the shift mechanism
7 Bushing
8 Shift cable
• Pry off of shift lever guide
• Press onto shift lever guide inside the shift mechanism
9 Damper
10 Bearing shell
• Is damaged during removal
• Always replace
11 Bushing
12 Retaining washer
• Removing and installing, refer to => [ Removing and Installing Lock Washer ]
13 Spring
14 Bushing
15 Shift lever guide
16 Nut
• M6 - 8 Nm
• M8 - 25 Nm
• Quantity: 4
17 Gasket
• Between shift housing and floor
• Self-adhesive
• Adhere to shift housing
18 Shift housing
• With spring and selector bracket
• The spring and selector bracket cannot be removed
Removing and Installing Lock Washer

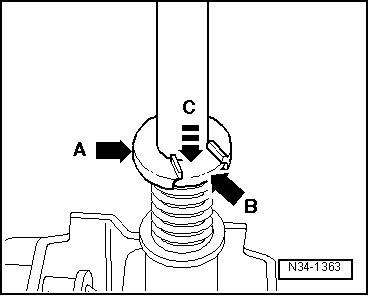

- To remove and install the lock washer - arrow A -, push the spacer bushing - arrow B - to the stop using a screwdriver in direction of - arrow C - and pull off the lock washer.
• Do not tilt bushing when pushing down.
• Groove in shift lever for lock washer must be visible.
• Carefully release tension on spring.
