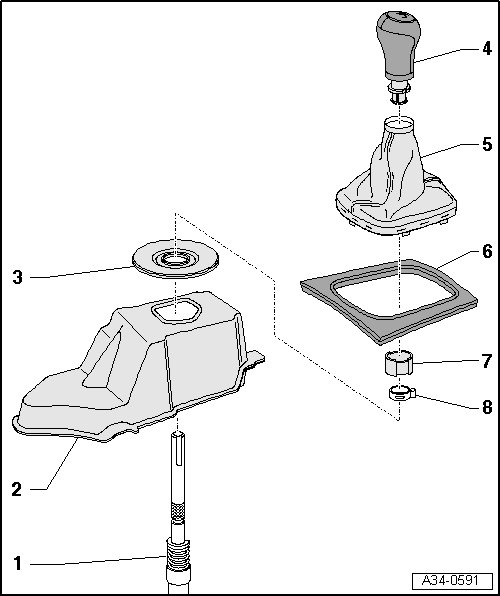

Shift Knob and Shift Lever Boot Assembly Overview

Shift Knob and Shift Lever Boot Assembly Overview






1 Selector lever

2 Lower noise insulation

3 Upper noise insulation

4 Shift lever knob

• Remove and install together with shift boot, refer to => [ Shift Knob with Shift Lever Boot ] Shift Knob with Shift Lever Boot

5 Shift lever boot

• Removing and installing together with shift knob, refer to => [ Shift Knob with Shift Lever Boot ] Shift Knob with Shift Lever Boot

6 Cover for center console

• Remove and install together with shift knob and shift boot, refer to => [ Shift Knob with Shift Lever Boot ] Shift Knob with Shift Lever Boot

7 Connecting piece

• Connects the shift lever boot to the shift knob

8 Clamp

• To secure shift knob on shift lever

• Securing with Hose Clamp Pliers (V.A.G 1275)
