High Mounted Brake Lamp In Roof Spoiler

High Mounted Brake Lamp in Roof Spoiler

Removing


• The upper rear lid trim only needs to be unclipped at the upper edge and bent away to remove the high-mount brake lamp.

• To prevent the upper rear lid trim from breaking, it must not be colder than 20 °C. Warm the trim slightly with a hot air gun if necessary. This applies especially to older vehicles.

- Unclip the upper rear lid trim at the upper retaining clips and bend it away.

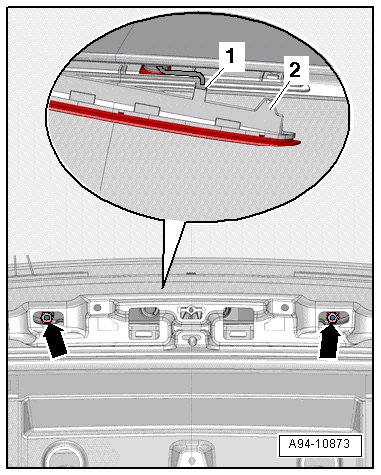

- Remove the bolts - arrows -.

- Remove the high-mounted brake lamp - 2 - from the roof spoiler opening.

- Disconnect electrical connector - 1 -.

• The connector can be disconnected only when the high-mounted brake lamp is removed.

Installing

Install in reverse order of removal, noting the following:

• In case of defective LEDs, the complete high-mount brake lamp must be replaced.

- Install upper rear lid trim.

Tightening Specifications
