Instrument Cluster / Carrier: Locations





Cluster Layout





Warnings and illuminated lamp

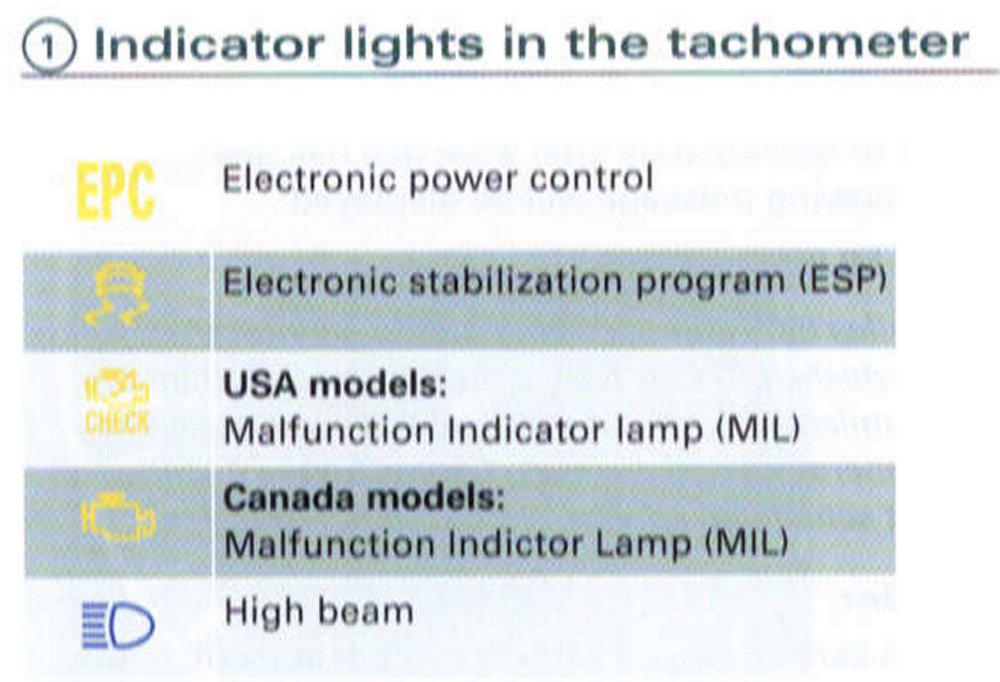

Indicator lights in the Tachometer

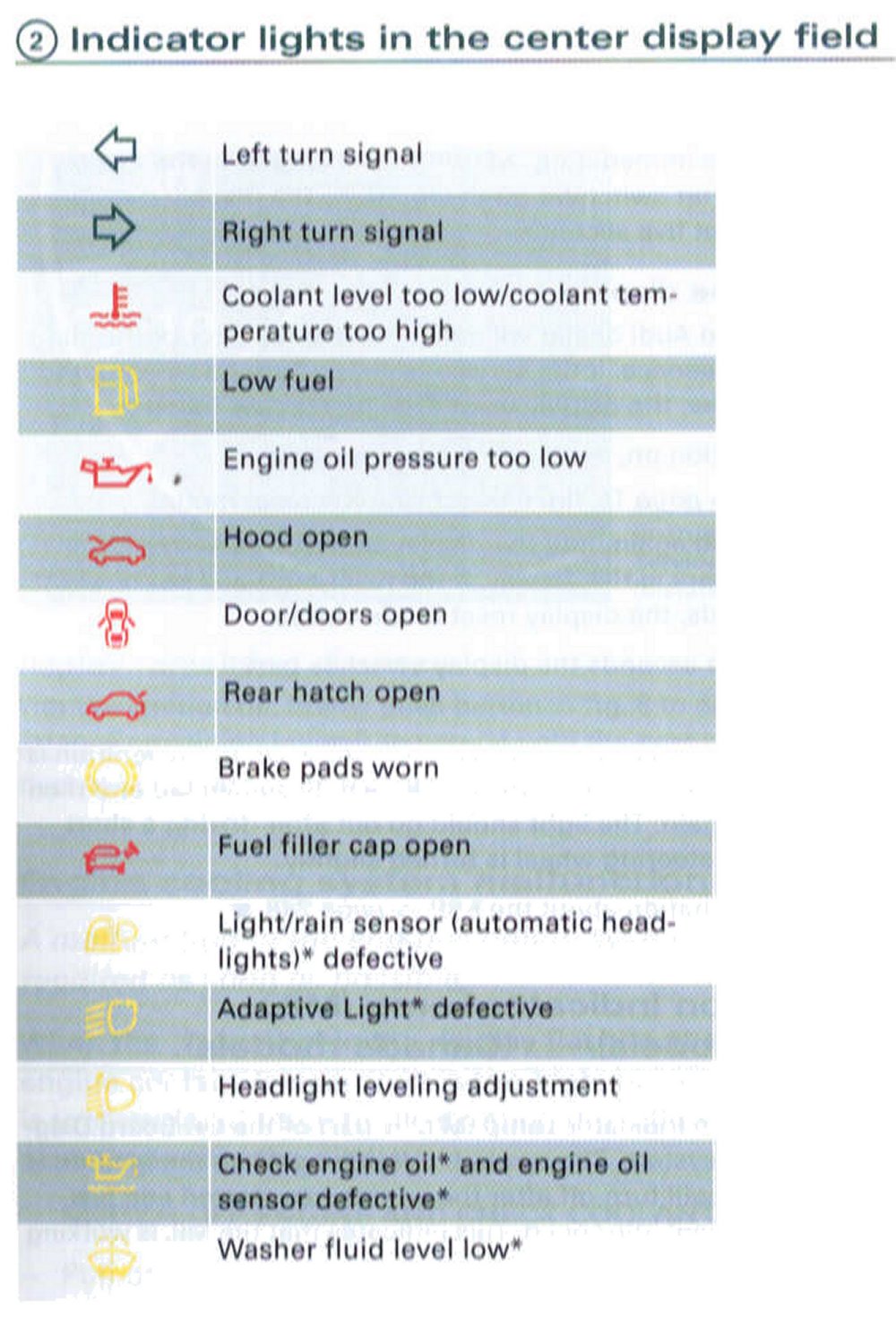

Indicator lights in the center dispaly field

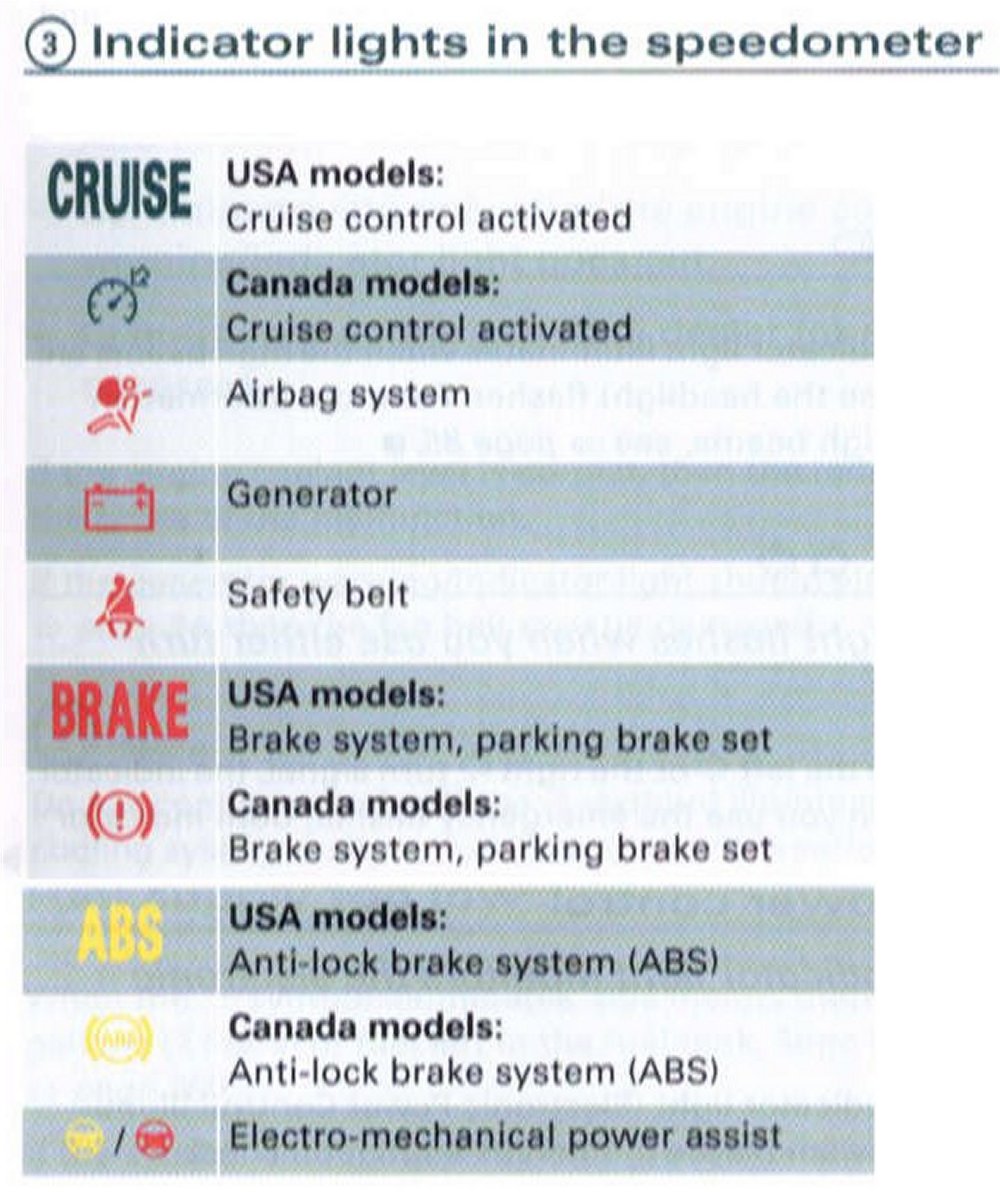

Indicator lights in the speedometer
