Rear Wheel Spoiler

Rear Wheel Spoiler

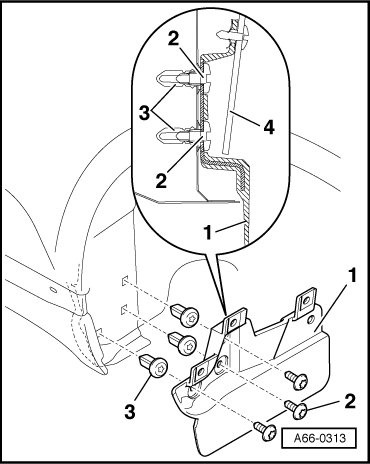

- Before removing wheel spoiler - 1 -, remove bolts at wheel housing liner - 4 - in this area.






- Push wheel housing liner to the side in this area.

- Remove bolts - 2 - and remove wheel spoiler.

- When installing, tighten bolts to 2.5 Nm.

- Install the clip - 3 -.
