Smooth Hose Washer Fluid Line, Repairing

Smooth Hose Washer Fluid Line, Repairing

• Smooth hoses with a diameter of 5 x 1 mm or 6 x 1 mm can be replaced with an Ethylene Propylene Diene Monomer (EPDM) hose. Refer to Electronic Parts Catalog (ETKA).

- Trim and remove damaged sections of hose.






- Select the appropriate EPDM hose - 2 - and cable tie. Refer to Electronic Parts Catalog (ETKA).

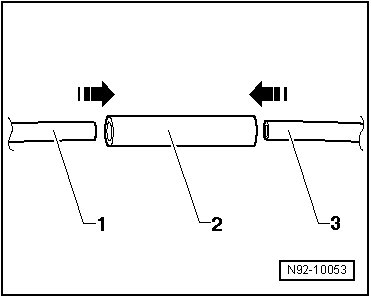

- Cut a length of EPDM hose - 2 - so that the ends of the smooth hose - 1 - and - 3 - can be pushed approximately 10 mm into the EPDM hose - 2 -.

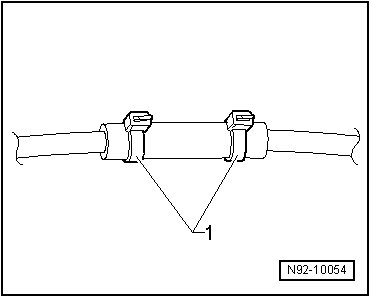

- Secure with cable ties as illustrated - 1 -.






- Check for function and leaks.
