Right Flange Shaft Seat on Outer Bevel Box, Replacing

Right Flange Shaft Seat on Outer Bevel Box, Replacing

Special tools, testers and auxiliary items required

• Thrust Piece (T10049)

Procedure

• Shaft seal can be replaced with transmission installed.

• General repair instructions, refer to => [ Repair Information ] 02EA (S-Tronic) Transmission.

• Observe cleanliness rules when working on transmissions, refer to => [ Clean Working Conditions ] 02EA (S-Tronic) Transmission.

- Remove the right flange shaft. Refer to => [ Right Flange Shaft ] Right Flange Shaft.

- Pry out flange shaft seal with lever.

- Lightly coat the outer circumference of the new shaft seal with oil.

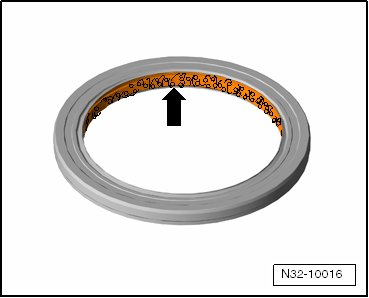

- Fill the space between the sealing- and dust lip - arrow - half way with sealing grease; sealing grease, refer to the Electronic Parts Catalog (ETKA).

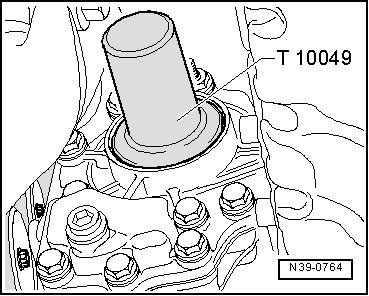

- Install the sealing ring all the way using the (T10049).






- Install the right flange shaft. Refer to => [ Right Flange Shaft ] Right Flange Shaft.

- Axle oil level, checking and filling. Refer to => [ Axle Oil Level, Checking and Filling ] Axle Oil Level, Checking and Filling.
