Right Flange Shaft Needle Bearing

Right Flange Shaft Needle Bearing

Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 407)

• Thrust Disc (VW 412)

• Subframe Support Assembling Device (VAS 3253)

• Assembly Tool (T10047)

Procedure

- Remove the right flange shaft. Refer to => [ Right Flange Shaft ] Right Flange Shaft.

- Mount the (T10047) as illustrated.

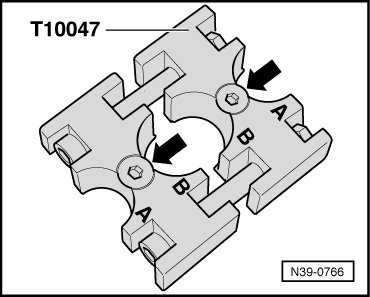

• The markings "B" on both parts face each other

• The depressions - arrows - must be under the bearing.

- Bolt the parts together.

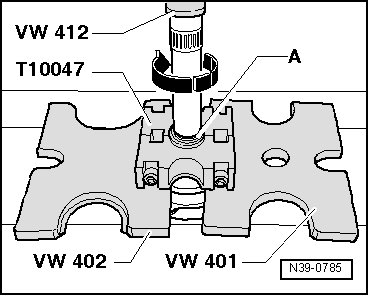

- Remove the locking ring - A -.

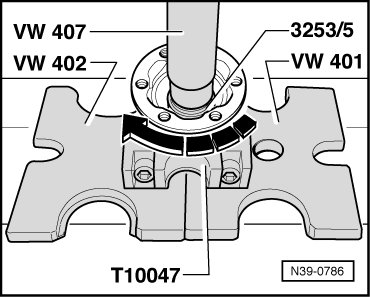

- The shaft must be rotated while pressing off - arrow - so that the contact surface on the needle bearing does not get damaged.

- The shaft must be rotated while installing - arrow - so that the contact surface on the needle bearing does not get damaged.






- Secure the needle bearing with a new circlip.

- Install the right flange shaft. Refer to => [ Right Flange Shaft ] Right Flange Shaft.
