All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) Overview

All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) Overview

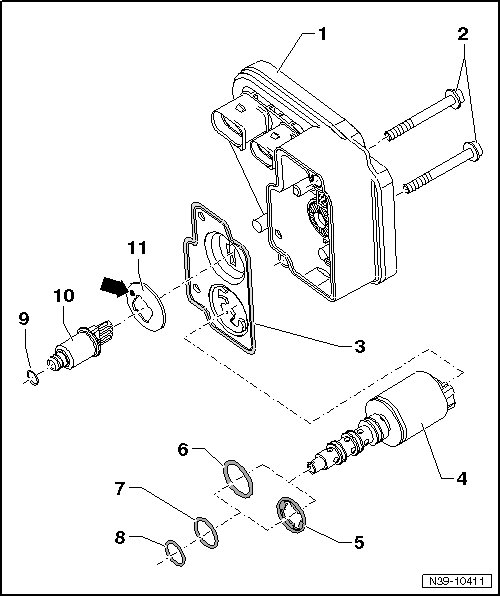

1 All Wheel Drive (AWD) Control Module (J492)

• Is calibrated with haldex clutch control valve (N373) => [ (Item 4) ]

• Always replace together with valve => [ (Item 4) ]

• Removing and installing, refer to => [ All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) ] All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II)

2 Bolt

• 6 Nm

3 Cover

• Always replace

• With vulcanized seal

4 Haldex Clutch Control Valve (N373)

• Is calibrated with AWD control module

• Always replace together with control module => [ (Item 1) ]

5 Seal

• Redesigned version with diagonal centering lips

• Sealing ring replaced => [ (Item 6) Seal ]

• Make sure the centering lip fits correctly in the groove

• Coat with high performance Haldex clutch oil and insert

• Always replace

6 Seal

• Old version

• The updated version is contained in the seal set => [ (Item 5) Seal ]

7 Seal

• Diameter 12 mm

• For Haldex clutch control valve

• Coat with high performance Haldex clutch oil and insert

• Always replace

8 Seal

• Diameter 11 mm

• For Haldex clutch control valve

• Coat with high performance Haldex clutch oil and insert

• Always replace

9 Seal

• For oil pressure/temperature sensor (G437)

• Coat with high performance Haldex clutch oil and insert

• Always replace

10 Oil Pressure/Temperature Sensor (G437)

• Can be reused when replacing control module

• Removing and installing, refer to => [ All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) ] All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II)

11 Plate Spring

• In installation position, marking - arrow - must be located at top and face toward pressure sensor, refer to => [ Plate Spring Location ].

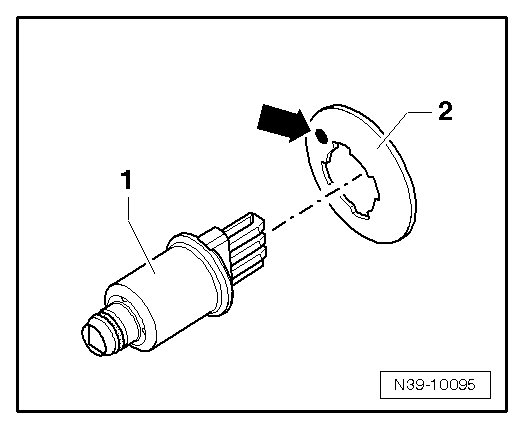

Plate Spring Location





• Marking - arrow - is located on convex side of plate spring - 2 -.

• The convex side with the marking - arrow - faces the pressure sensor - 1 -.

• Marking - arrow - faces upward in installation position.
