Final Drive, Differential (02EA (S-Tronic) Transmission)

Special Tools






Special tools, testers and auxiliary items required

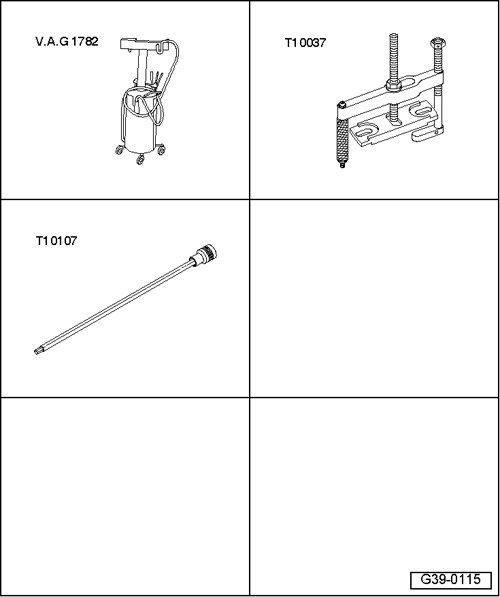

• Oil Collecting and Extracting Device (V.A.G 1782)

• Puller (T10037)

• Socket and Extended Bit (T10107)






Special tools, testers and auxiliary items required

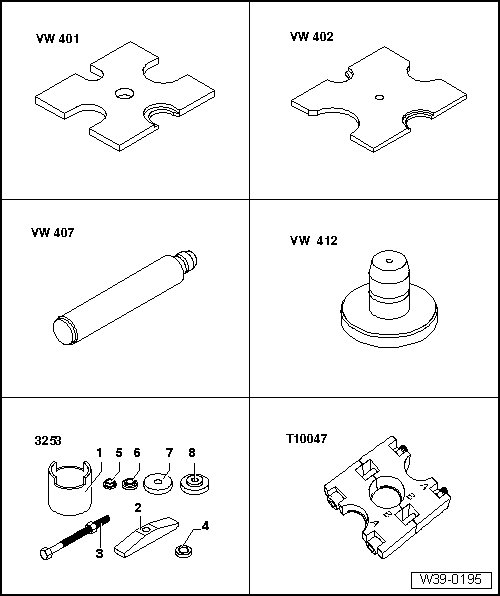

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 407)

• Thrust Disc (VW 412)

• Subframe Support Assembling Device (VAS 3253)

• Assembly Tool (T10047)






Special tools, testers and auxiliary items required

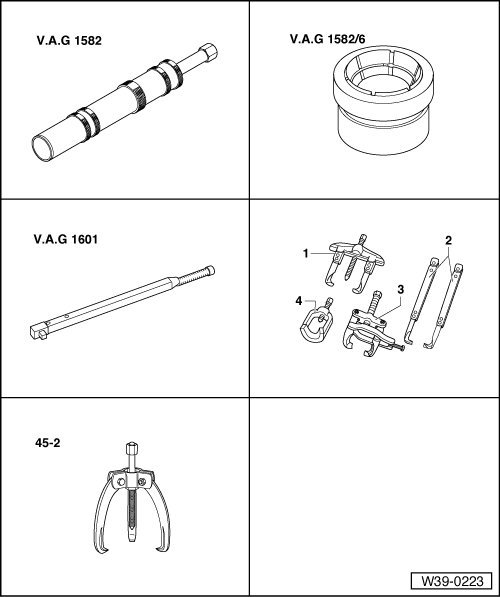

• Tapered Roller Bearing Puller (V.A.G 1582)

• Attachment to VAG 1582 (V.A.G 1582/6A)

• Torque wrench (V.A.G 1601)

• - 1 - Kukko 20/10 two-arm puller

• Kukko 45/2 three arm puller






Special tools, testers and auxiliary items required

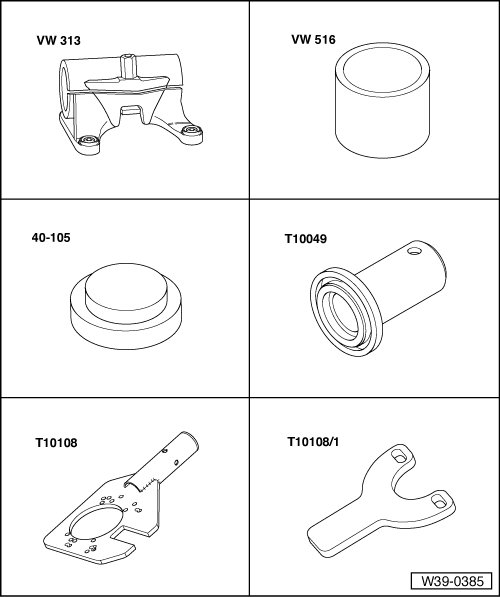

• Holding Fixture (VW 313)

• Tube 42 mm Dia. (VW 516)

• Thrust Piece (40-105)

• Thrust Piece (T10049)

• Transmission Support (T10108)

• Stop Plate (T10108/1)

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200) for vehicles from 11.09






• Thrust Piece (3305)

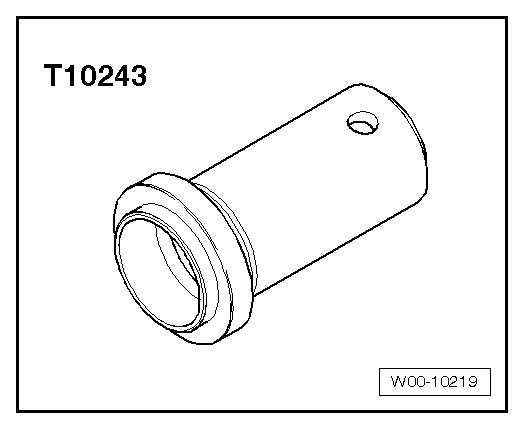

• Thrust Piece (T10243)

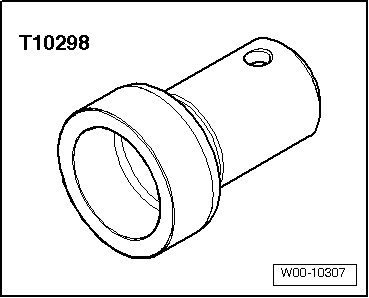

• Thrust Piece (T10298)






• Pulling Hook (T20143)






• Sleeve (VW 423)

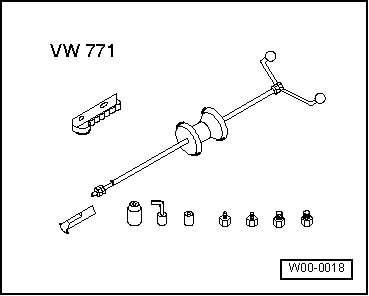

• Slide Hammer-Complete Set (VW 771)






• Pulling Hook (VW 771/31)
