Selector Lever Boot, Separating from Handle

Selector Lever Boot, Separating from Handle

Sequence:






- Remove the selector lever handle. Refer to => [ Selector Lever Handle with Front Locking Button ] Selector Lever Handle with Front Locking Button.

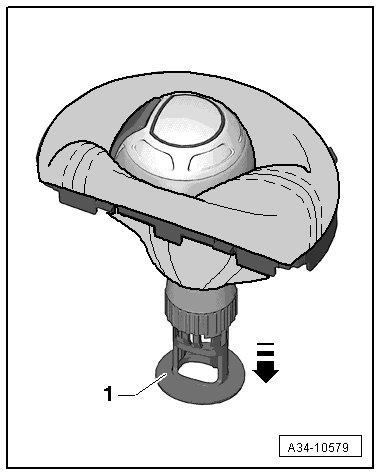

- Remove the guide - 1 - in the direction of the - arrow -.

• Do not touch the locking button - A - when the handle is removed.

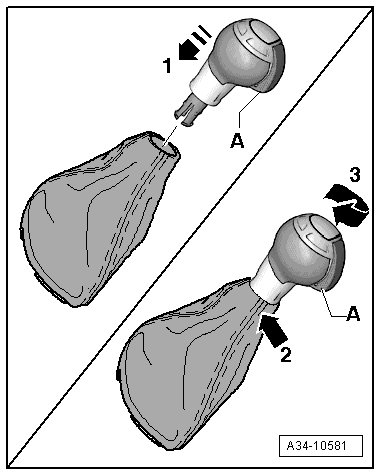

- Hold the selector lever boot on the top end - arrow 1 -.

- Turn the handle in the direction of - arrow 2 - and remove it - arrow 3 -.

Assemble the Selector Lever Boot and Handle:






• Do not touch the locking button - A - when the handle is removed.

- Selector lever handle and locking button turned 90° to the left, insert into the selector lever boot - arrow 1 -.

- Hold the selector lever boot on the top end - arrow 2 -.

- Turn the handle in direction of - arrow 3 -.

- Install the guide - 1 - opposite the direction of the - arrow - upward into the handle.






- Install the selector lever handle. Refer to => [ Selector Lever Handle with Front Locking Button ] Selector Lever Handle with Front Locking Button.
