Home >> Audi >> 2009 >> TTS Quattro Coupe (8J3) L4-2.0L Turbo (CDMA) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatically Shifted Manual Transmission/Transaxle >> Application and ID >> 02EA (S-Tronic) Transmission >> Code Letters, Transmission Allocations, Ratios and Equipment

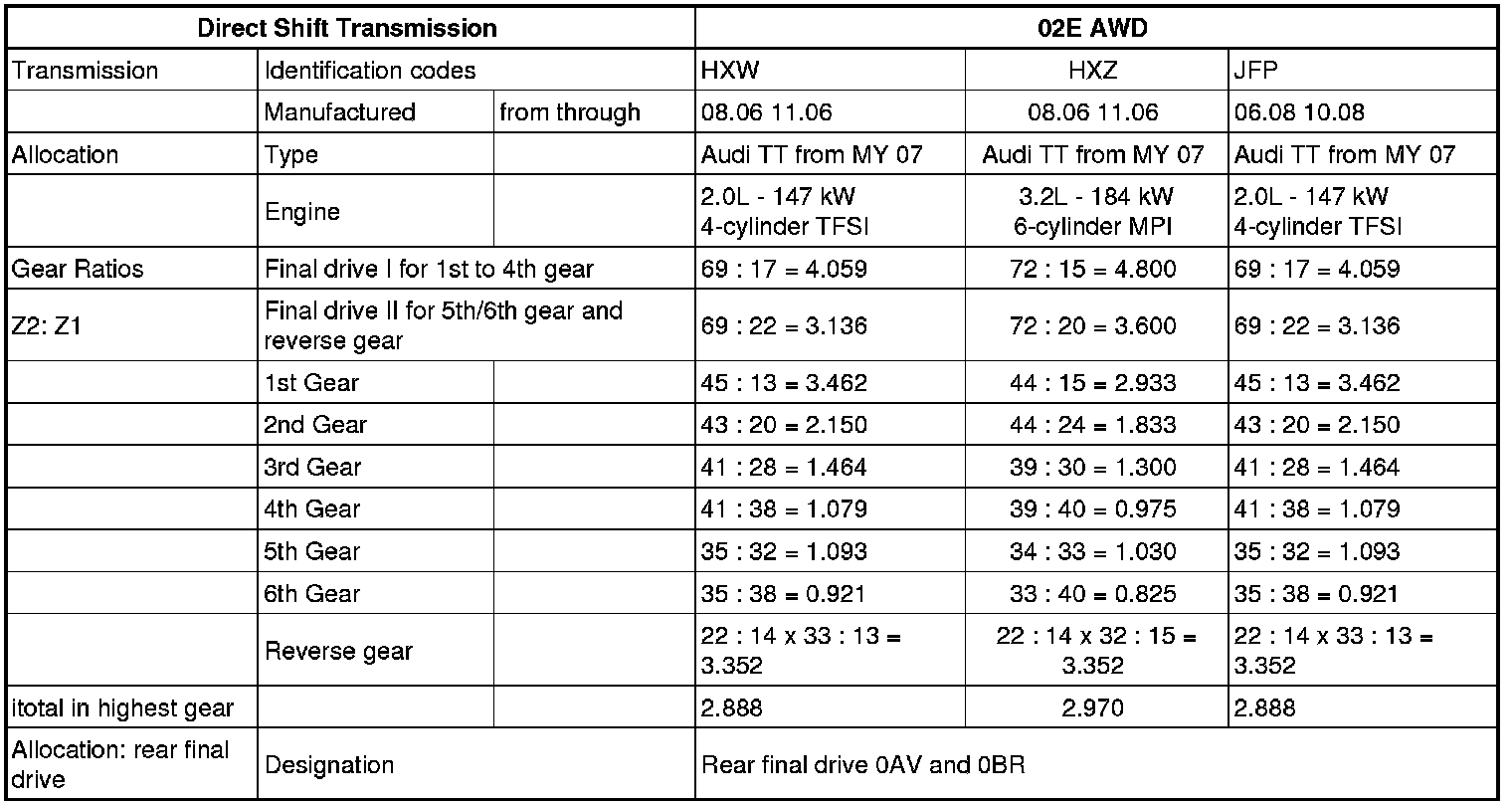

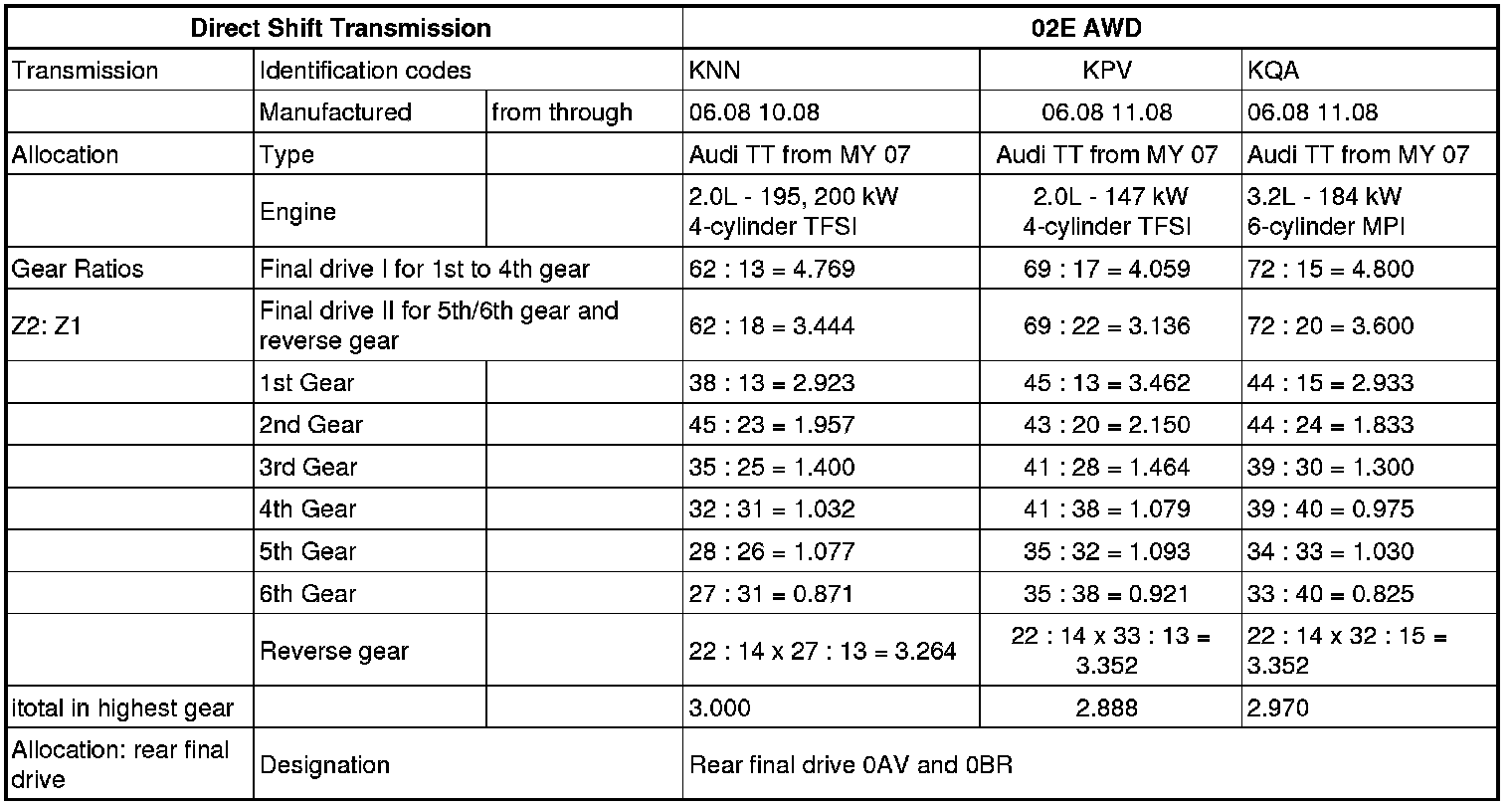

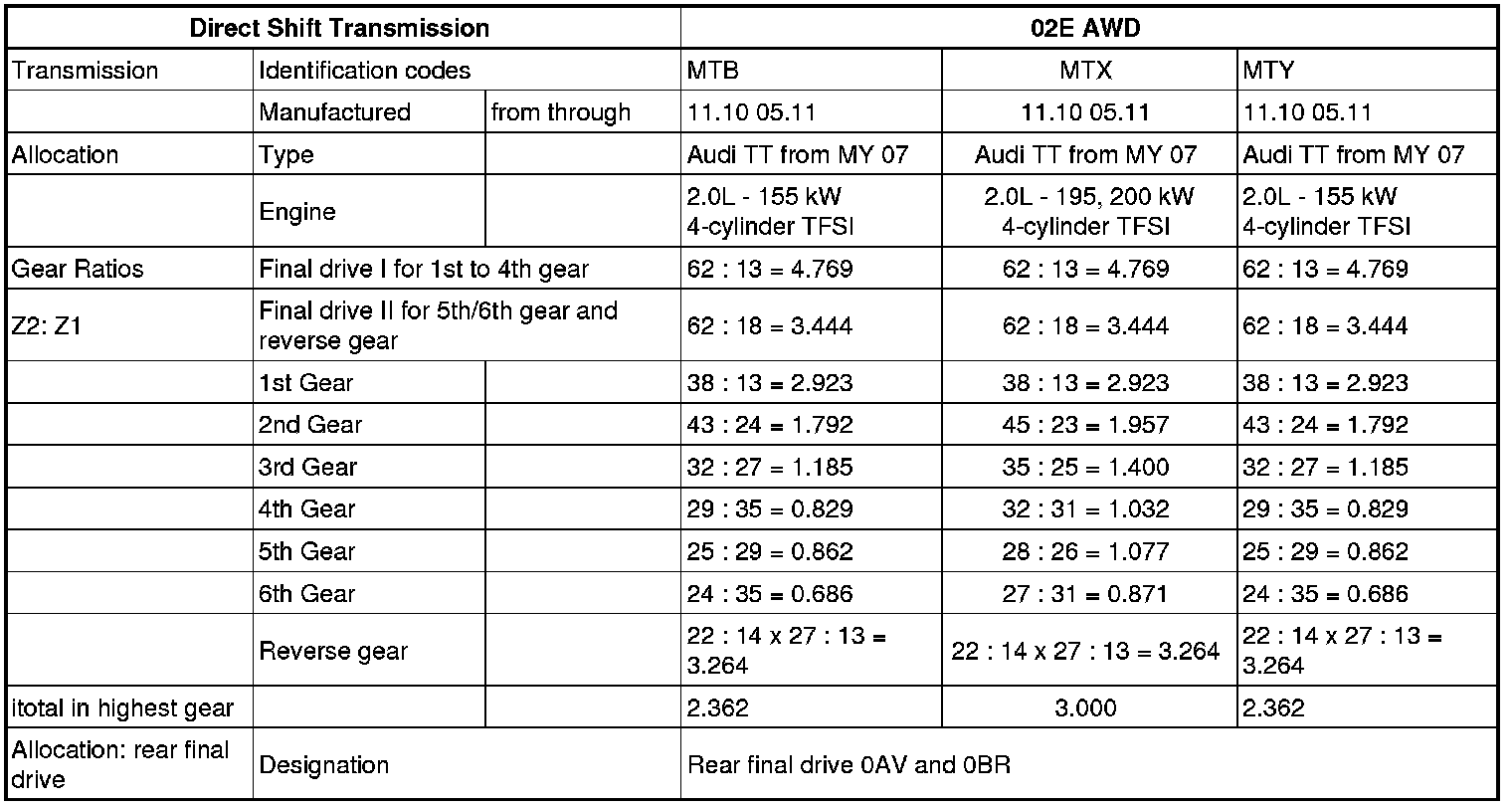

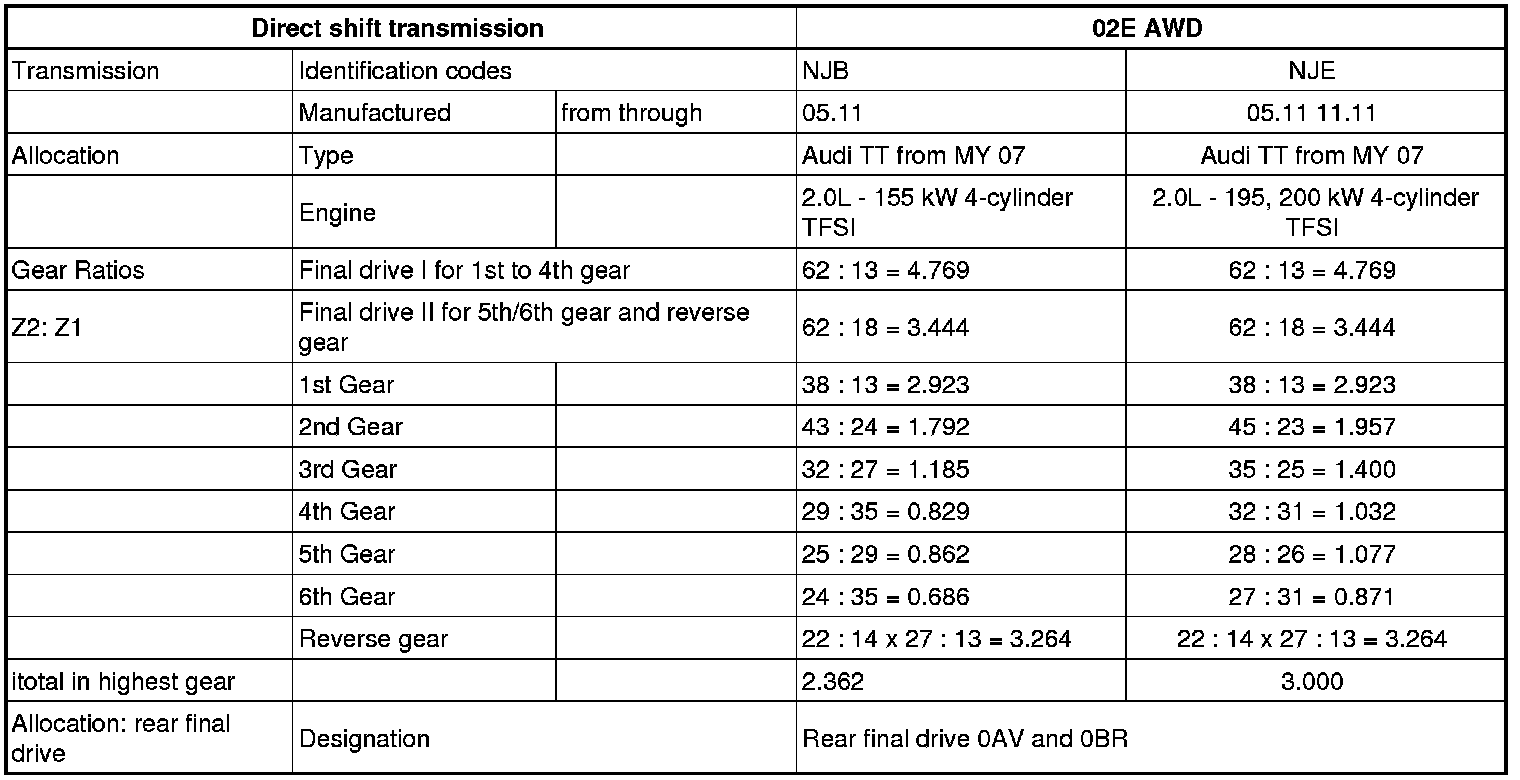

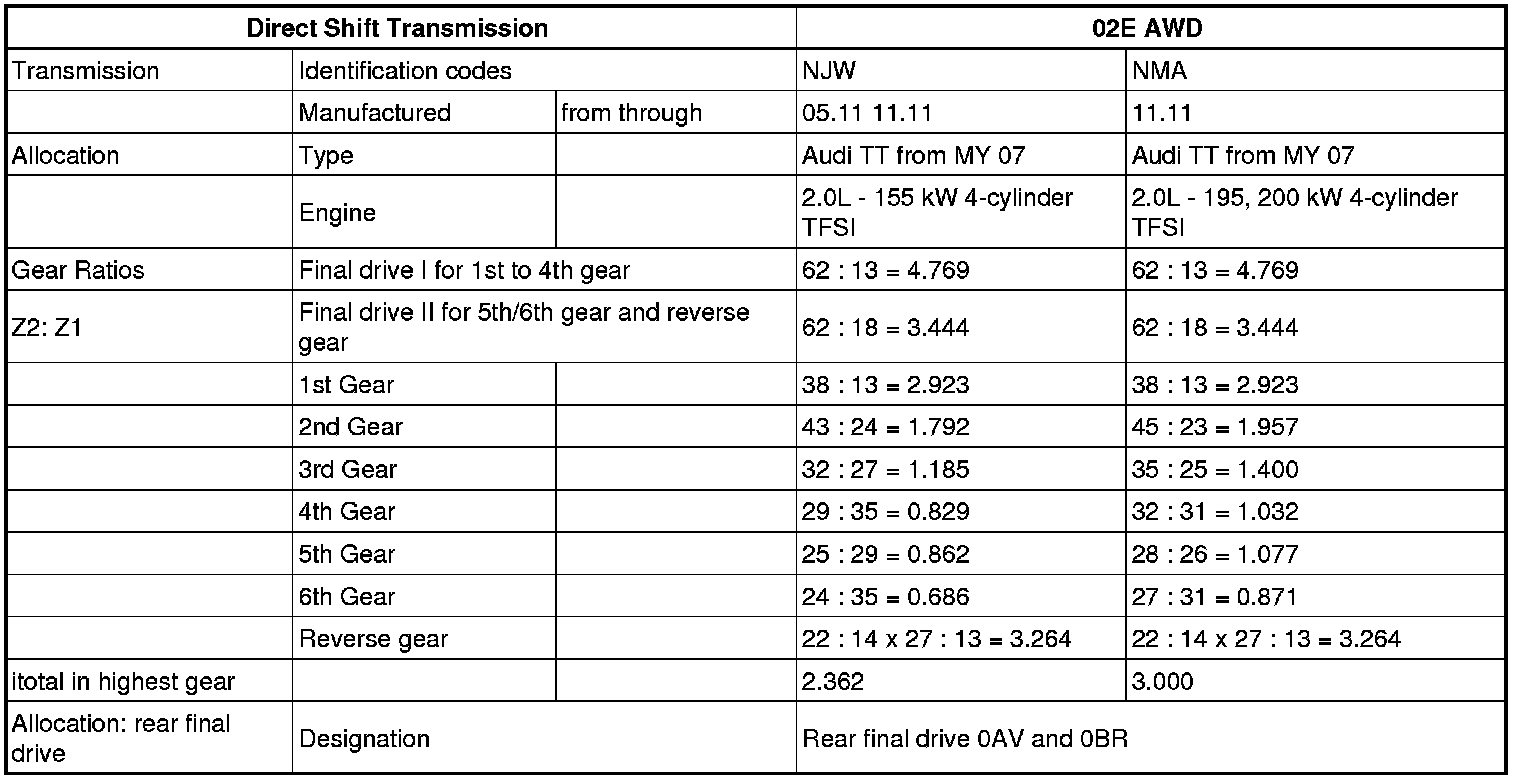

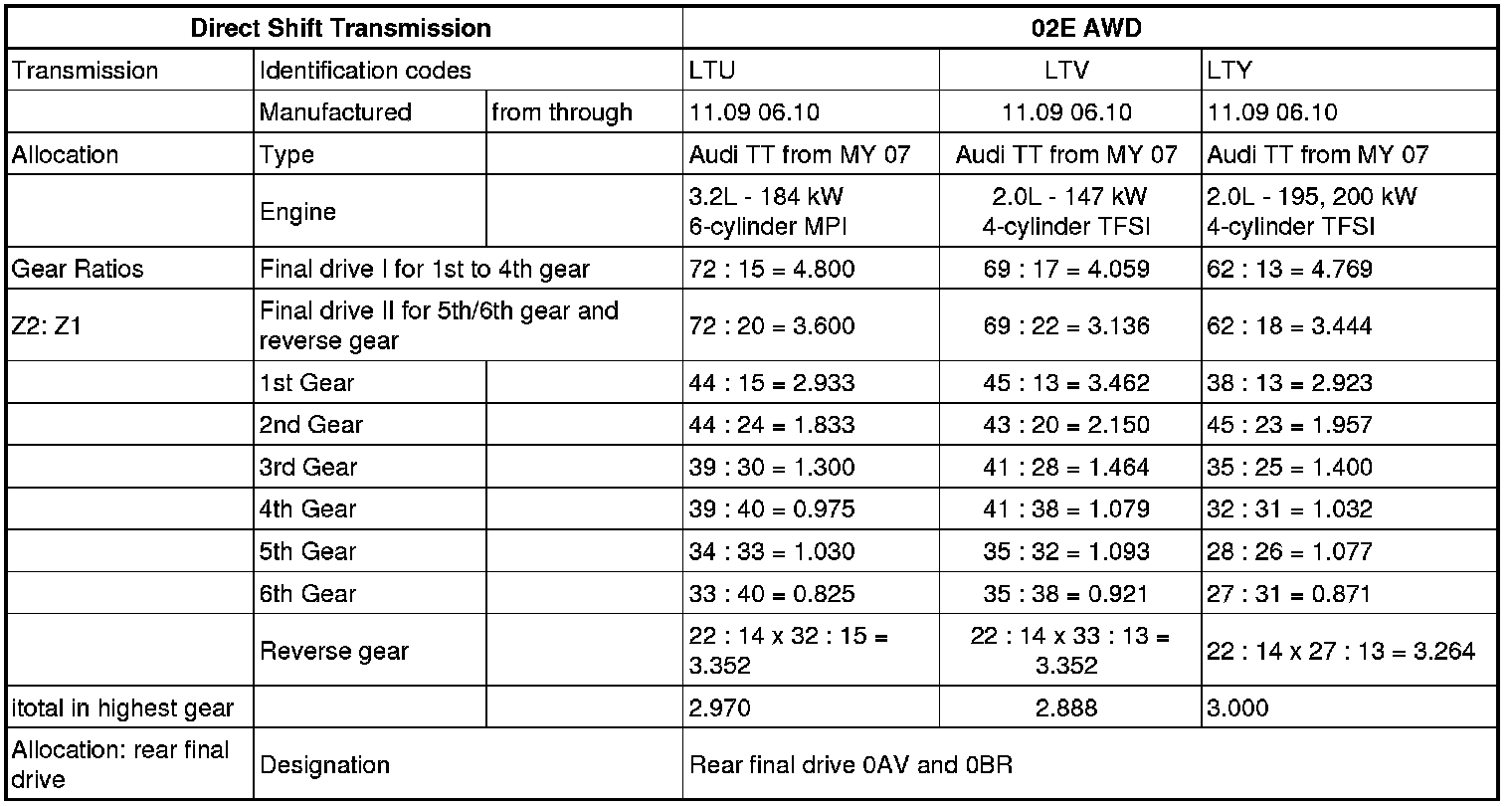

Code Letters, Transmission Allocations, Ratios and Equipment






Code Letters, Transmission Allocations, Ratios and Equipment
