Suspension - Shock Absorber Fluid Leak Diagnosis
40 08 032018194/1
July 17, 2008

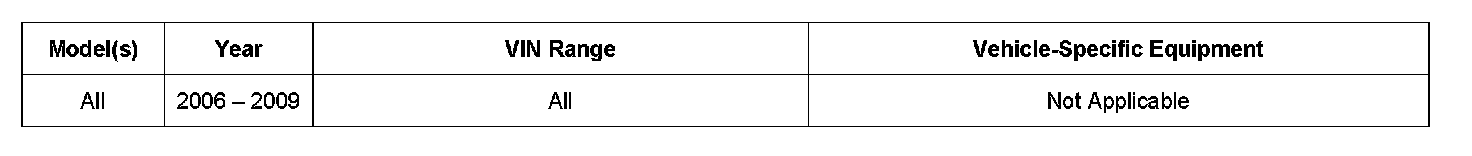

Vehicle Information
Shock absorber leaks: assessment aid
Condition
One or several shock absorbers have an oil coating.
Technical Background
---
Production Solution
---
Service
This information is designed to help you assess whether a shock absorber is leaking or just sweating.

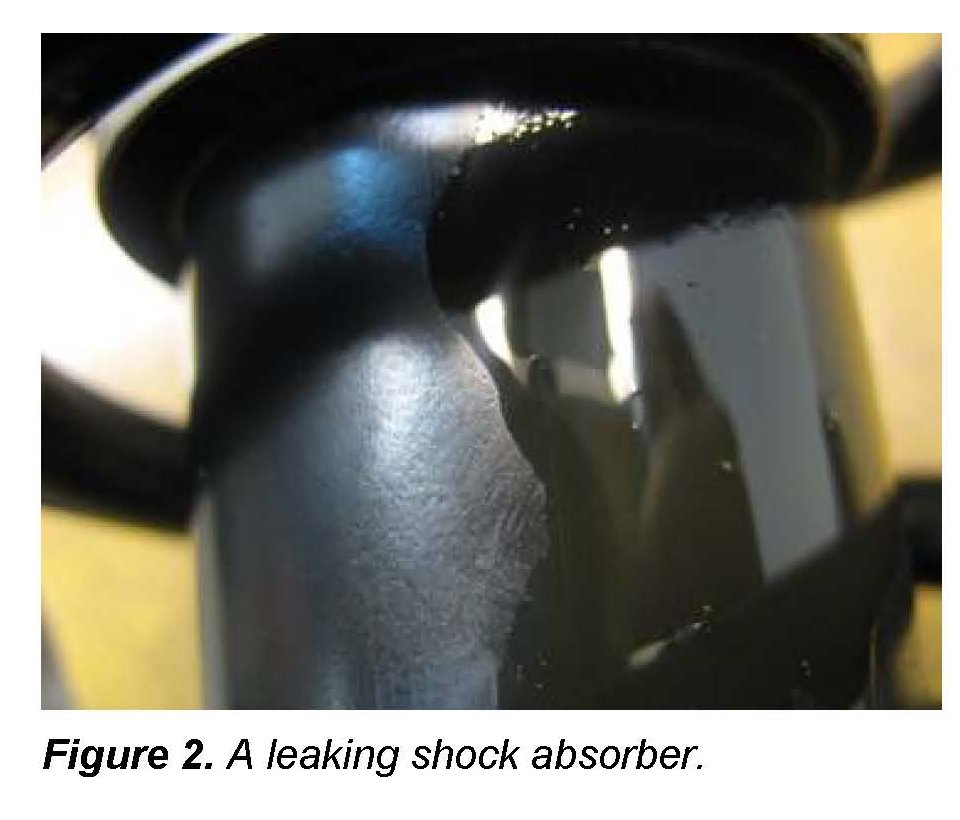

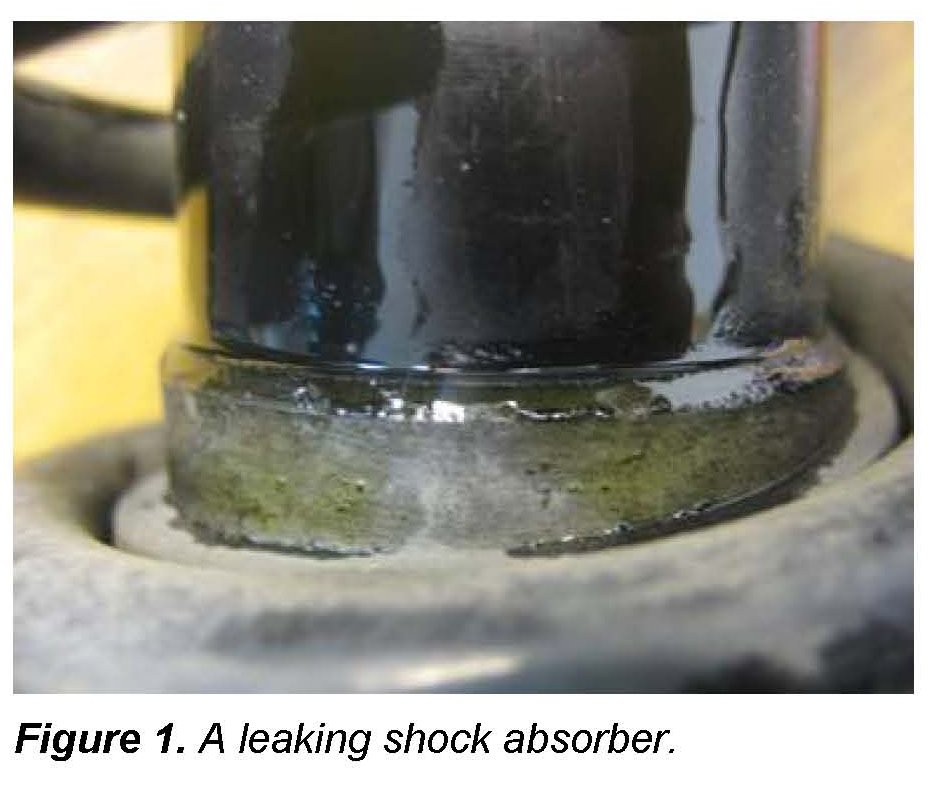

Leaking shock absorbers
A leaking shock absorber is characterized by a wet film of oil running down the pipe. This needs to be replaced.

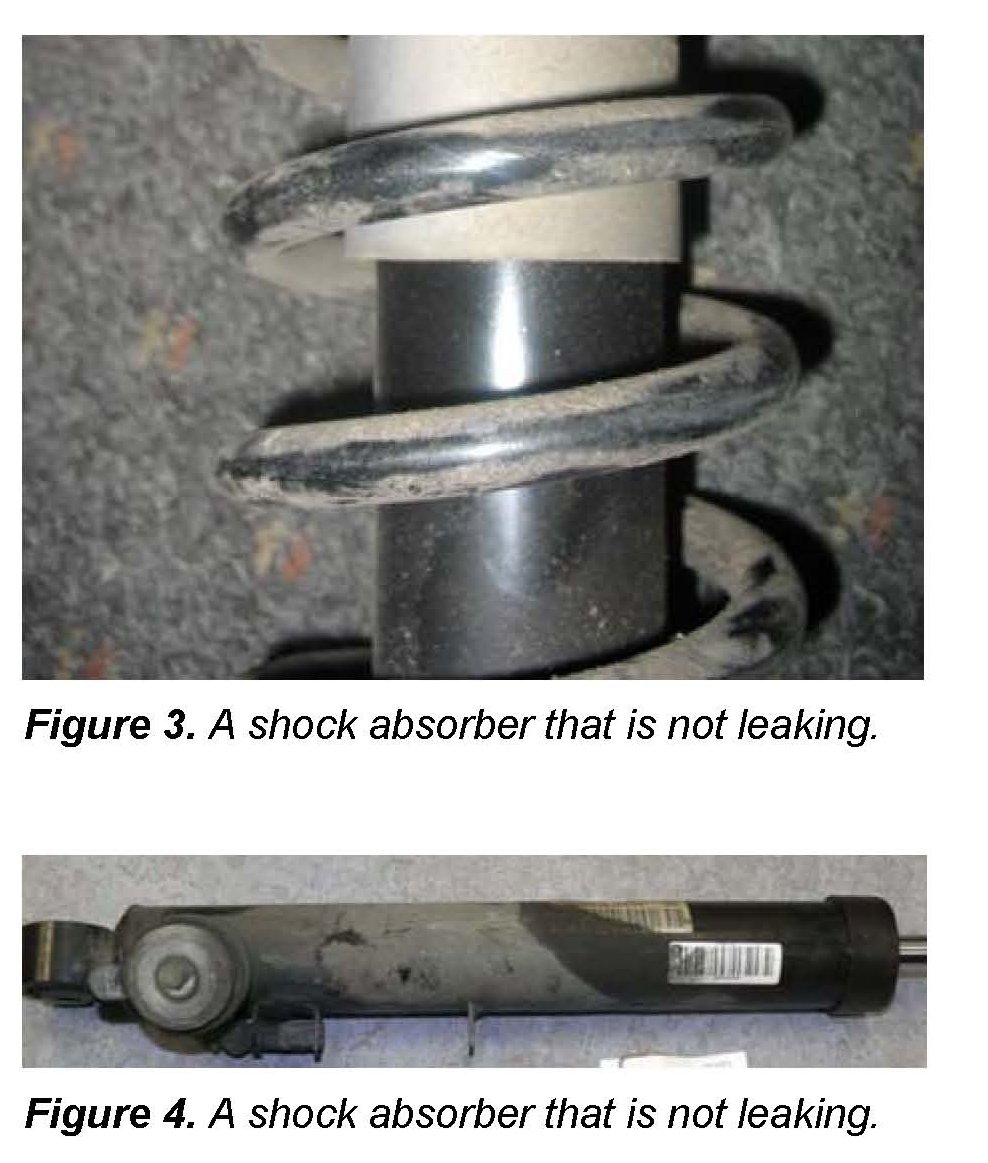

Shock absorbers covered in condensation
A light film of dried oil or oil traces on the pipe beneath the dust guard shows condensation.
Tip:
The technical properties of the shock
absorber are not impaired by condensation. No repair is necessary.
Warranty
This TSB is informational only and not applicable to any Audi warranty.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
