Audi Magnetic Ride Front Shock Absorbers, Venting

Audi Magnetic Ride Front Shock Absorbers, Venting

- Clamp magnetic ride shock absorber vertically in vise.






Wear protective eyewear while drilling.

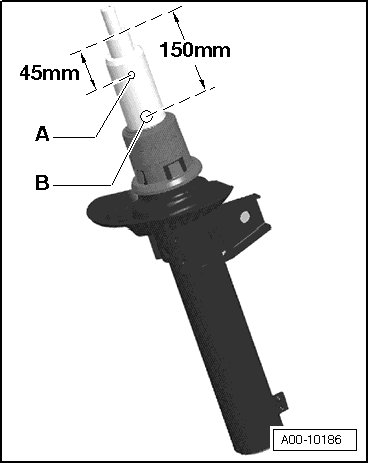

- Drill a 3 mm hole - arrow A - through outer tube of shock absorber.

• Gas escapes when drilling.

- Drill a second 6 mm hole - arrow B - through outer tube of shock absorber.

- Hold shock absorber over appropriate container for catching oil and move piston rod repeatedly through entire stroke until no more oil flows out.
