Top Tether Child Seat Anchorage

Top Tether Child Seat Anchorage

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)






Removing

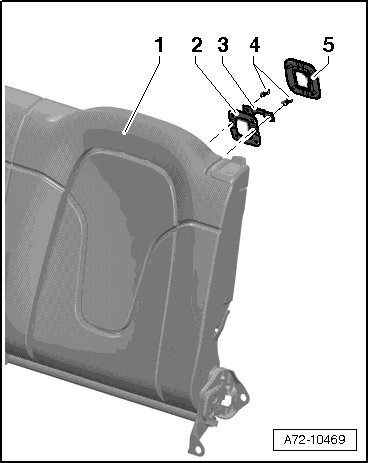

- Unclip outer trim - 5 - using Trim Removal Wedge (3409).

- Remove the bolts - 4 -.

- Remove bracket - 3 -.

- Remove inner trim - 2 - from backrest - 1 -.

Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Top Tether Child Seat Anchorages Assembly Overview ] Top Tether Child Seat Anchorages Assembly Overview.
