Clockspring Assembly / Spiral Cable: Service and Repair

Airbag Spiral Spring/Return Spring With Slip Ring

Special tools, testers and auxiliary items required

• Feeler Gauge

Removing

• Steering must be in center position (wheels in straight ahead position) when removing and installing coil connector with slip ring.

- Remove steering column trim. Refer to Storage Compartments and Covers.

- Remove Steering Column Electronic Systems Control Module (J527). Refer to => [ Steering Column Electronic Systems Control Module (J527) ] Steering Column Electronic Systems Control Module (J527).

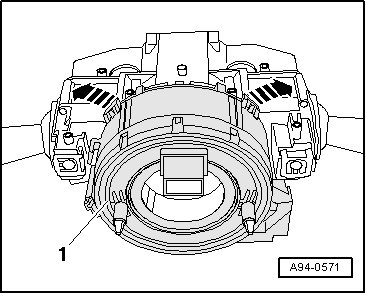

- Carefully release fasteners - arrows - and pull Airbag Spiral Spring/Return Spring With Slip Ring - 1 - off steering column switch module.






Installing

Install in reverse order of removal. Note the following:

- Make sure all fasteners and electrical connectors are properly engaged.
