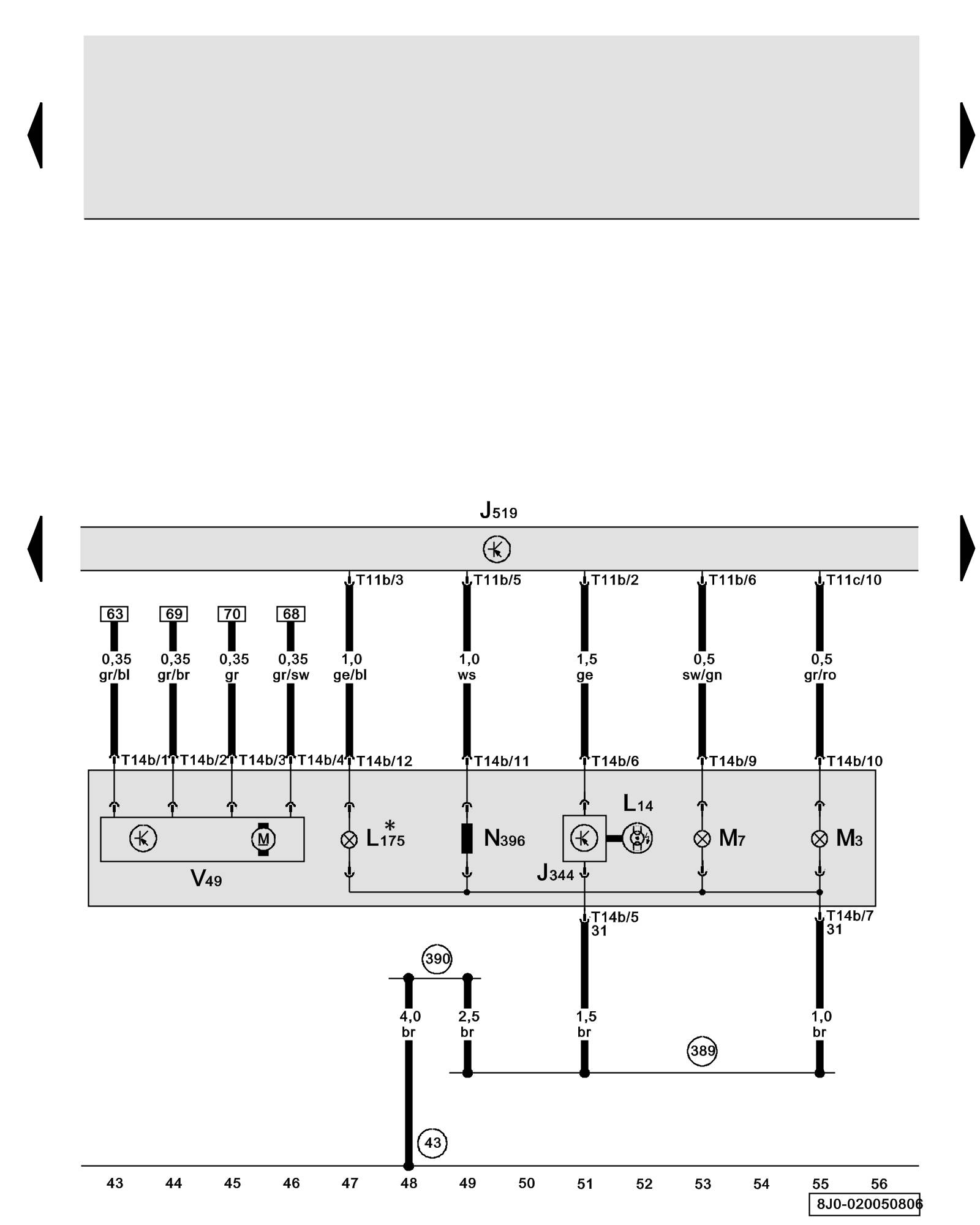

Diagram 20/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Right High-intensity Gas Discharge Lamp Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J344 - Right High-intensity Gas Discharge Lamp Control Module Locations

J519 - Vehicle Electrical System Control Module Component Locations

L14 - Right High Intensity Gas Discharge (HID) Lamp

L175 - Right Daytime Running Lamp (DRL) Lamp

M3 - Right Parking Lamp

M7 - Right Front Turn Signal Lamp

N396 - Right Headlamp Reflector Adjustment Solenoid

T11b - 11-Pin Connector, black (Connector A), on vehicle electrical system control module

T11c - 11-Pin Connector, brown (Connector D), on vehicle electrical system control module

T14b - 14-Pin Connector, black, on right headlamp

V49 - Right Headlamp Beam Adjustment Motor Locations

(43) - Ground Connection (on right lower A-pillar) Locations

(389) - Ground Connection 24 (in main wiring harness)

(390) - Ground Connection 25 (in main wiring harness)

* - Models with daytime running lights

Previous Diagram 20/4 (Tracks 29-42)

Next Diagram 20/6 (Tracks 57-70)
