Inner Door Handle Bulb (L146)/(L147)

Inner Door Handle Bulb (L146)/(L147)

Removing






- Remove front door trim.

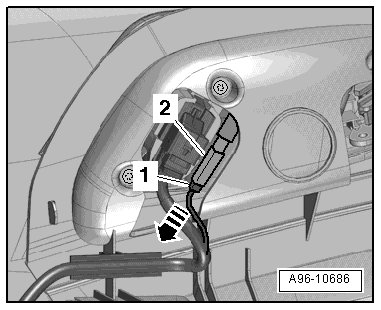

- Disconnect the electrical connector - 1 -.

- Remove the bulb socket - 2 - from the door opener - arrow -.

Installing

Install in reverse order of removal. Note the following:

- Insert the door opener illumination bulb into the opening and engage.

- Install front door trim.
