Headliner

Headliner

• The headliner is removed with the convertible top installed.

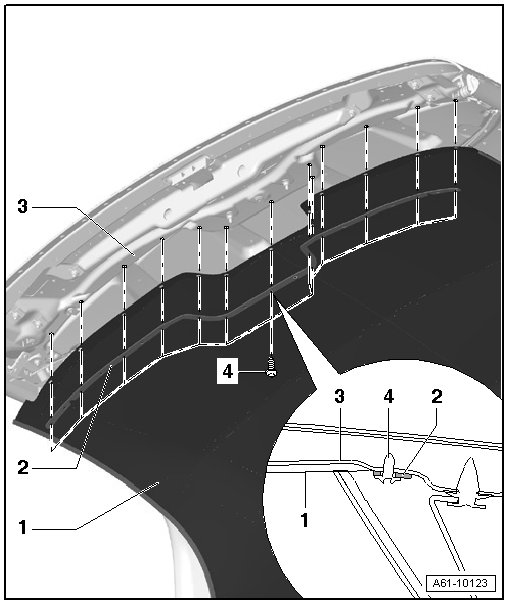

Front Headliner






1 Front convertible top headliner

• Front trim removed.

• Front cover removed => [ Front Cover, Removing ] Convertible Top Latch

• To remove, remove bolts - 4 -.

2 Retaining strip

• Removed

3 Convertible top front rail

4 Bolt

• 1.5 Nm

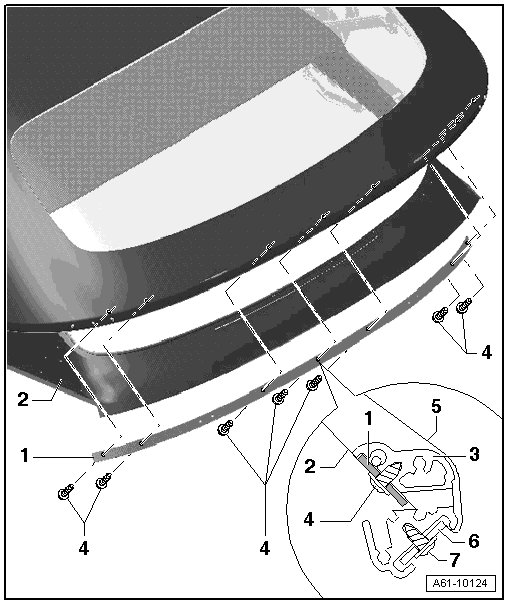

Rear Headliner

• In the case of a new convertible top headliner, missing outer holes must be replaced by the retaining strip.






1 Retaining strip

• Retaining strip with tensioning strap removed.

• No replacement part, part of the convertible top headliner delivery package.

2 Rear convertible top headliner

• The convertible top headliner is secured all around to the rear window with Velcro strip.

• To remove, pull from the rear window.

3 Bracket

4 Bolt

• 2.5 Nm
