Convertible Top Cable: Service and Repair

Guide Cable Mount on Roof Guide

Guide Cable Mount on Roof Guide 2






- To remove cover, remove bolt - 2 - for guide cable - 3 - on roof guide 2 - 1 -.

- Loosen all tension cable threaded connections and tensioning straps for securing cover.

- Remove cover retaining strips at rails.

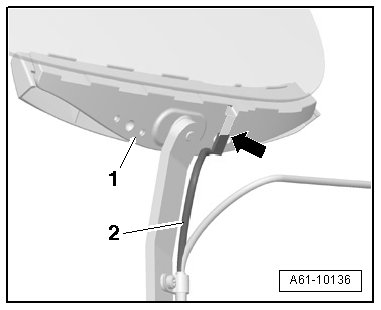

- On angle bracket - 1 -, drill out rivet heads - arrows - for securing the cover and drive out rivet shafts.

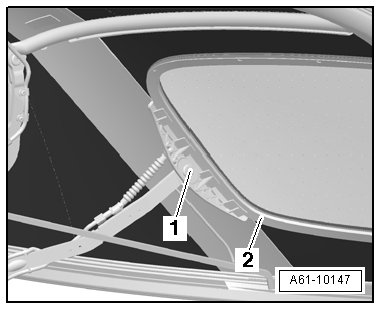

- Remove rear window securing screw - 1 -






- Tighten to 6 Nm when installing

- Loosen the screw on the upper release cable on the rear window and detach the release cable.

- Disconnect window defroster wire at connection - arrow -.
