Engine Mount Brace

Engine Mount Brace

Roadster

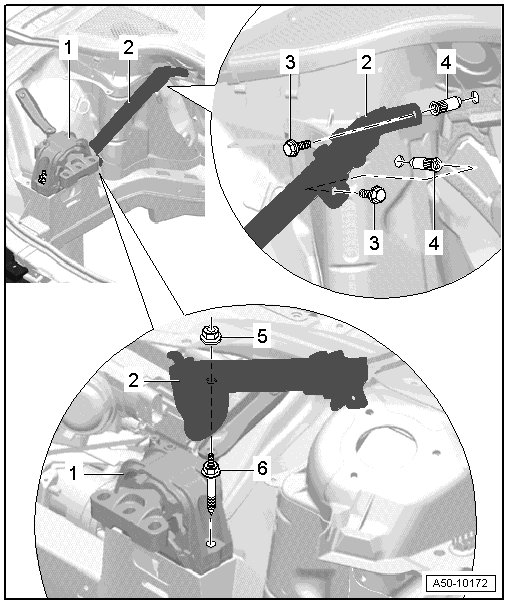

1 Engine mount

2 Engine mount brace

• Remove nut - 5 - and bolts - 3 -.

3 Bolt

• 23 Nm

4 Internally threaded pop rivet

5 Nut

• 10 Nm

6 Special bolt

• Do not remove for brace removal.
