Bumper Bracket

Bumper Bracket

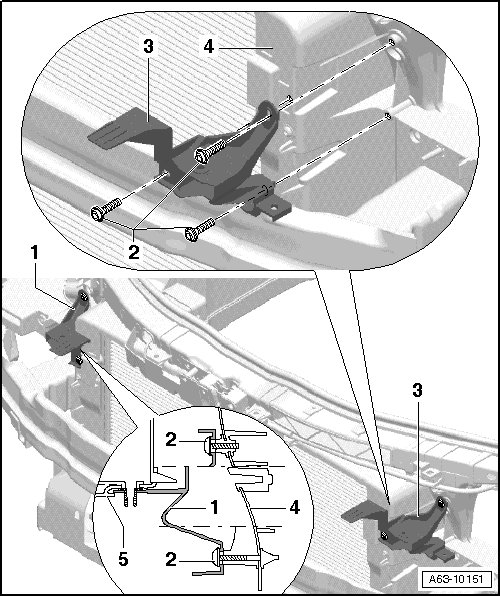

Removing






1 Right bumper bracket

• Remove bolts - 2 - from lock carrier- 4 -

2 Bolt

• 5 Nm

3 Left bumper bracket

• Remove bolts - 2 - from lock carrier- 4 -

4 Lock Carrier
