Mid-Range Speaker Trim

Mid-Range Speaker Trim

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)






Removing






• Removing and installing is identical for the left and right sides.

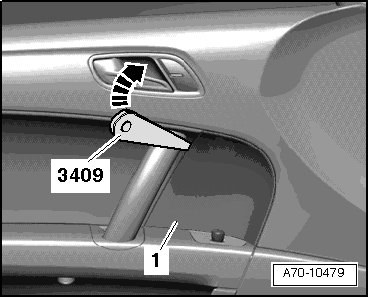

- Pry speaker trim - 1 - out of door trim - arrow - beginning at the back of the top corner using the Trim Removal Wedge (3409).

Installation

Install in reverse order of removal. Note the following:

- Make sure the trim engages audibly.
