Bass Speaker Trim

Bass Speaker Trim

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)






Removing






• Removing and installing is identical for the left and right sides.

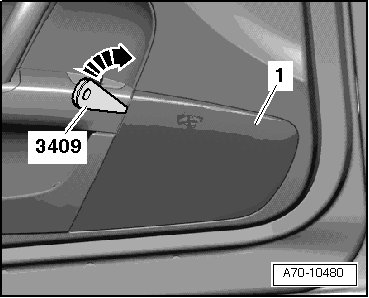

- Beginning at the armrest seal, pry speaker trim - 1 - out of door trim - arrow - at top and sides using Trim Removal Wedge (3409).

- Pull speaker trim upward out of door trim.

Installation

Install in reverse order of removal. Note the following:

- First engage bottom of speaker trim in door trim.

- Make sure the trim engages audibly.
