Twelve-Point With Ribs Between Drive Axle and Wheel Hub, Loosening and Tightening

Twelve-Point Bolt with Ribs Between Drive Axle and Wheel Hub, Loosening and Tightening

Special Tools and Workshop Equipment Required:
- Socket XZN 24 -T10361-
- Angle Wrench -V.A.G 1756-

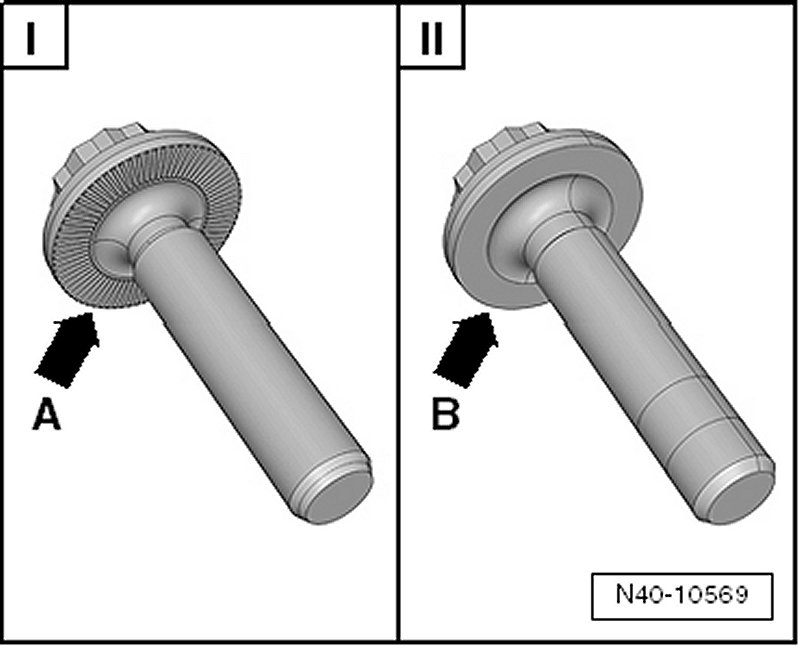

Characteristic Between a Twelve-Point Bolt with Ribs and a Twelve-Point Bolt without Ribs






The contact surfaces -arrow A- amd -arrow B- are different on the two-point bolts.

I - Twelve point bolt with ribs -arrow A-.
II - Twelve point bolt withouth ribs -arrow B-.


The wheel bearing must not be under a load while the drive axle threaded connection on the wheel side is loose.

If the bearings are loaded by the vehicle's own weight the wheel bearing will be damaged. If vehicle must be moved, observe the following:
- Install an outer joint in place of the drive axle.
- Tighten outer joint to 120 Nm.

Loosening

- With vehicle still resting on wheels, loosen 12-point bolt with -T10361- maximum 90°, otherwise, wheel bearing will be damaged.
- Raise vehicle enough that wheels hang freely.

- Operate brake (second mechanic required).

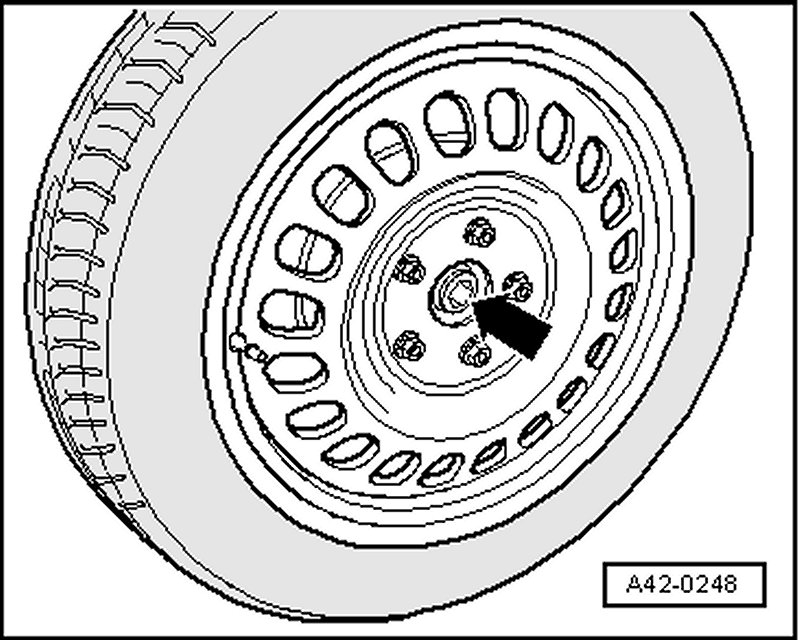

- Remove 12-point bolt -arrow-.

NOTE:
Before Installing, clean the threads in the CV joint with a tap.

Tightening

- Replace 12-point bolt.

NOTE:
Wheels must not yet touch the ground to tighten the drive axle, wheel bearing may otherwise be damaged.

- Operate brake (second mechanic required)

- Tighten 12-point bolt to 70 Nm.

- Lower the vehicle onto its wheels.

- Tighten 12-point bolt an additional 90°.
