Hex Bolt Between Drive Axle and Wheel Hub, Loosening and Tightening

Hex Bolt Between Drive Axle and Wheel Hub, Loosening and Tightening

Special Tools and Workshop Equipment Required:
- Angle Wrench -V.A.G 1756-

Loosening

- With vehicle still standing on it wheels, loosen bolt a maximum of 90°, otherwise wheel bearing will be pre-damaged.

- Raise vehicle enough that wheels hang freely.

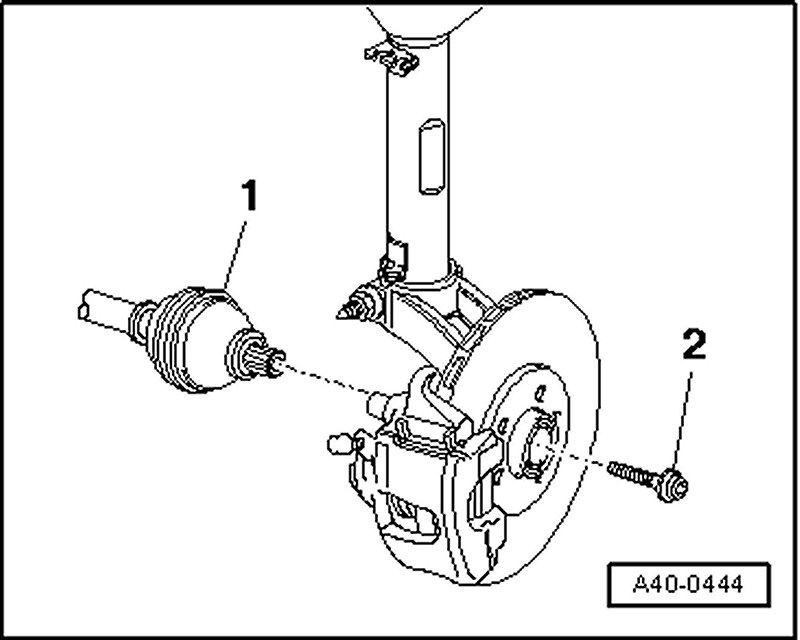

- Remove bolt -2-.

Tightening

- Replace bolt -2-.

NOTE:
- Before installing, clean the threads in the CV joint with a tap.
- Wheels must not yet touch the ground to tighten the drive axle, wheel bearing may otherwise be damaged.

- Operate brake (second mechanic required).

- Tighten bolt to 200 Nm.

- Lower the vehicle onto its wheels.

- Tighten bolt and additional 180°.
