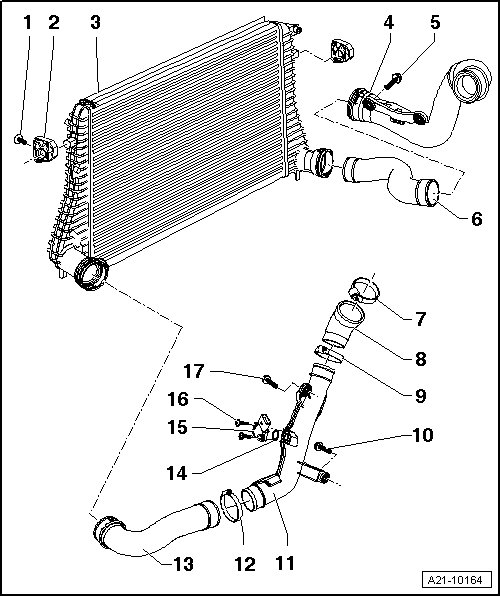

Charge Air Cooler Overview

Charge Air Cooler Overview






1 Bolt

• 5 Nm

2 Mount

• For charge air cooler

3 Charge Air Cooler

4 Charge Air Pipe

• Assembly of hose connections with connection couplings, refer to => [ Hose Connections with Connector Couplings, Assembling ] Hose Connections with Connector Couplings, Assembling

5 Bolt

• 10 Nm

6 Charge Air Hose

• Assembly of hose connections with connection couplings, refer to => [ Hose Connections with Connector Couplings, Assembling ] Hose Connections with Connector Couplings, Assembling

7 Hose clamp

8 Charge Air Hose

• To throttle valve control module (J338)

9 Hose Clamp

10 Bolt

• 10 Nm

11 Charge Air Pipe

12 Hose Clamp

13 Charge Air Hose

• Assembly of hose connections with connection couplings, refer to => [ Hose Connections with Connector Couplings, Assembling ] Hose Connections with Connector Couplings, Assembling

14 Seal

• Replace

15 Charge Air Pressure Sensor (G31)

16 Bolt

• 5 Nm

17 Bolts

• 10 Nm
