Valve Body: Service and Repair

Mechatronic Unit

Removing





- Remove the oil pan. Refer to => [ Oil Pan ] Oil Pan.

- Remove the transmission fluid filter. Refer to => [ Transmission Fluid Filter ] Service and Repair.

- Disconnect the connectors from the automatic transmission hydraulic pressure sensor 1 (G193) - 1 - and automatic transmission hydraulic pressure sensor 2 (G194) - 2 - carefully.

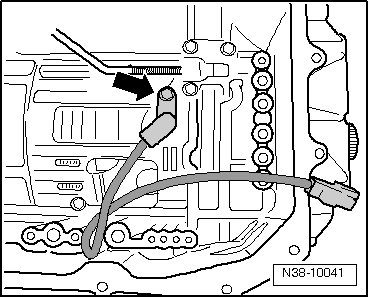

- Remove the bolt - arrow -.

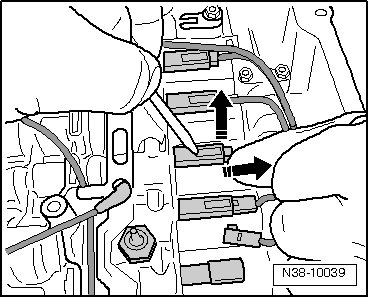

- Carefully disconnect the connector.

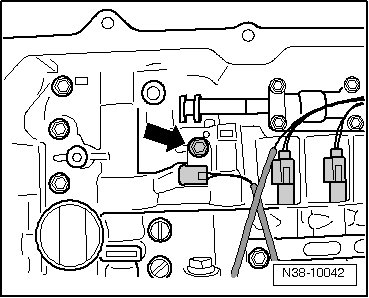

- Remove the bolt - arrow - from the transmission fluid temperature sensor (G93).

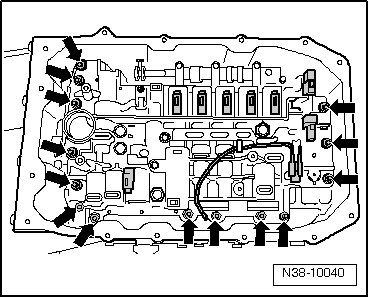

- Loosen the bolts - arrows - for the Mechatronic unit diagonally and then remove them.

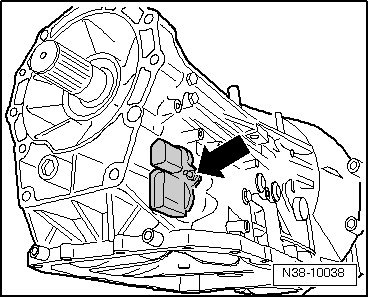

- Remove the bolt - arrow - from the transmission output speed sensor (G195).





Installing

Install in reverse order, paying attention to the following:

• Tightening specifications, refer to => [ Mechatronic Unit Bolt
Tightening Sequence and Specification ] Oil Pan, Filter and Mechatronic Unit Overview.

• Replace bolts that are tightened to the angle specification.

- Mount the Mechatronic unit without using force.

- Tighten the Mechatronic unit bolts. Refer to => [ Mechatronic Unit Bolt
Tightening Sequence and Specification ] Oil Pan, Filter and Mechatronic Unit Overview.





- Attach the connectors as far as the stop.

• Connectors must engage.

- Install the oil filter. Refer to => [ Transmission Fluid Filter ] Service and Repair.

- Install the oil pan. Refer to => [ Oil Pan ] Oil Pan.

- Fill the ATF and check the level. Refer to => [ ATF, Draining Or Filling after Repair ] ATF, Draining or Filling After Repair.
