Controls, Housing

Special Tools

Special tools, testers and auxiliary items required

• Oil Collecting and Extracting Device (V.A.G 1782)

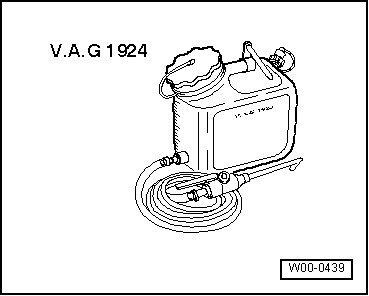

• ATF Filler Tool (V.A.G 1924)





• Vehicle Diagnosis, Testing and Information System (VAS 5051B)





• Socket and Key (T40031)





• Hose Clamp Pliers (V.A.G 1275)





• Puller (T10055)

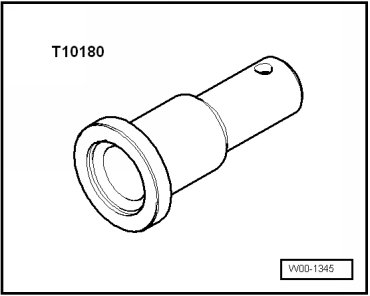

• Press Tool for Shaft Seal (T10180)

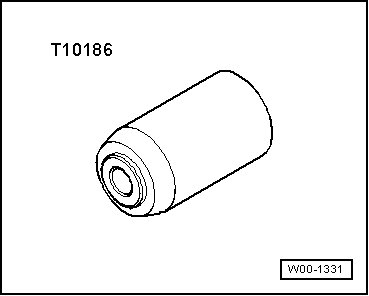

• Sleeve for Shaft Seal (T10186)










Special tools, testers and auxiliary items required

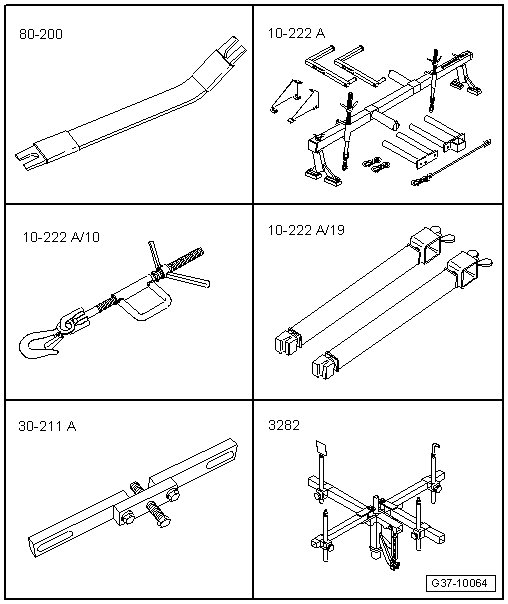

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Engine Support Bridge (10 - 222 A)

• Bracket with Spindle and Hook (10 - 222 A/10)

• Adapters (10 - 222 A/19)

• Bracket (30 - 211 A)

• Transmission Support (3282)






Special tools, testers and auxiliary items required

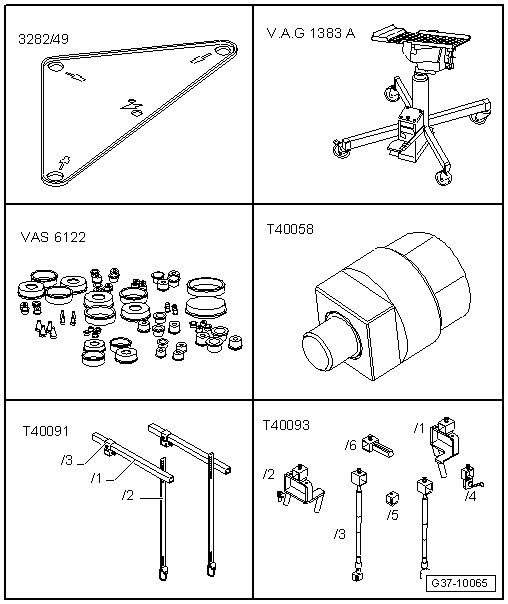

• Adjustment Plate (3282/49)

• Engine/Transmission Jack (V.A.G 1383A)

• Engine Bung Set (VAS 6122)

• Socket (T40058)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)






Special tools, testers and auxiliary items required

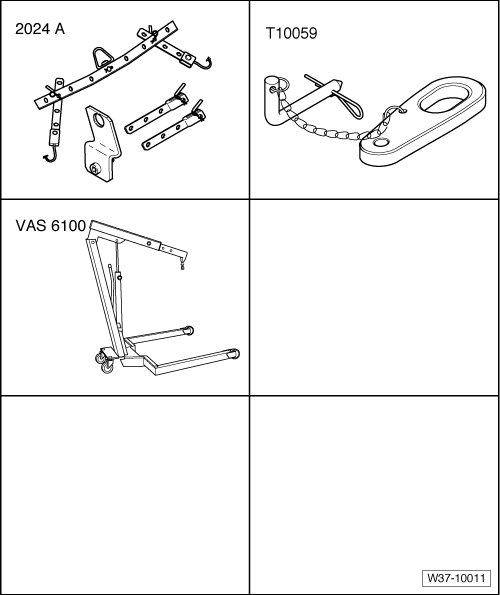

• Engine Sling (2024 A)

• Shackle (T10059)

• Workshop Crane (VAS 6100)
