Fastener Tightening Specifications

Fastener Tightening Specifications






Battery Jump Start Terminal (U6) Pins

- Tighten the bolt - 1 - for the battery jump start terminal to 15 Nm.






Ground Connection in the Right of the Plenum Chamber

- Tighten the nut - 2 - to 9 Nm.






Ground Connection on the right Longitudinal Member






- Tighten the nut - 1 - to 15 Nm.

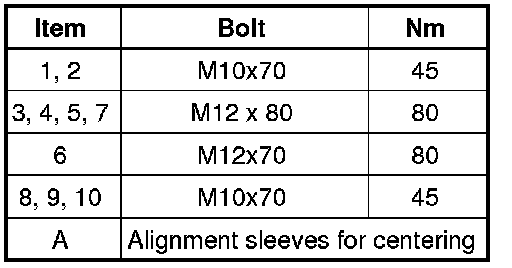

Engine to Automatic Transmission 09D

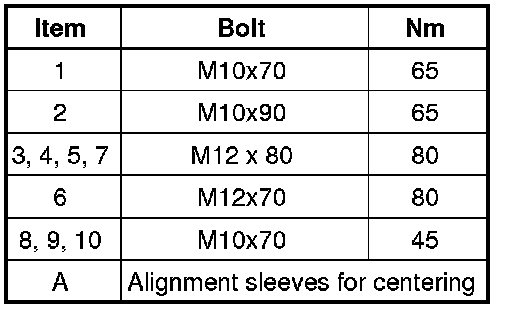

Engine and 8-Speed Automatic Transmission 0C8
